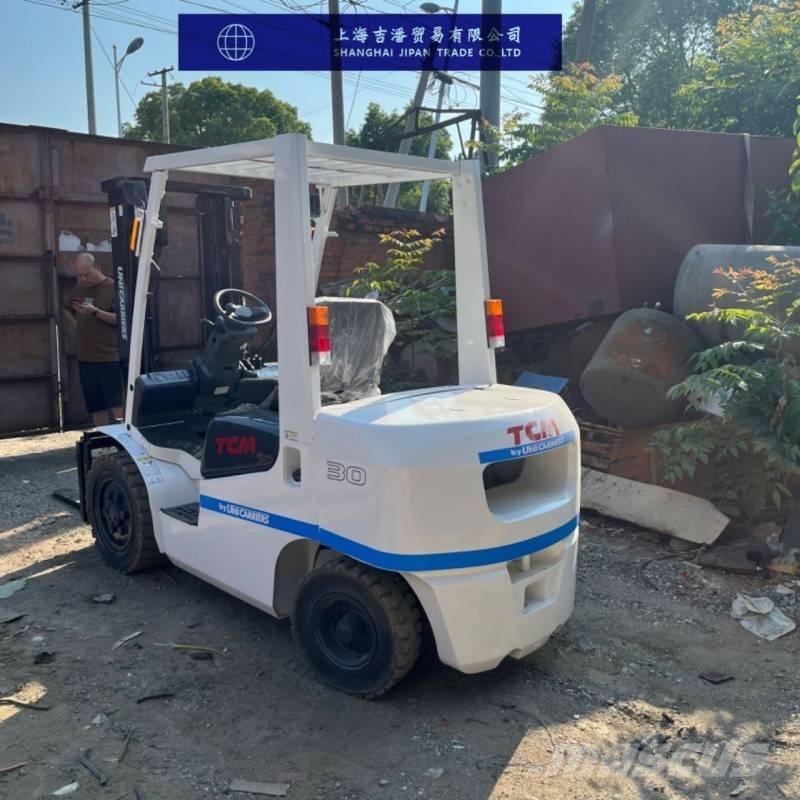

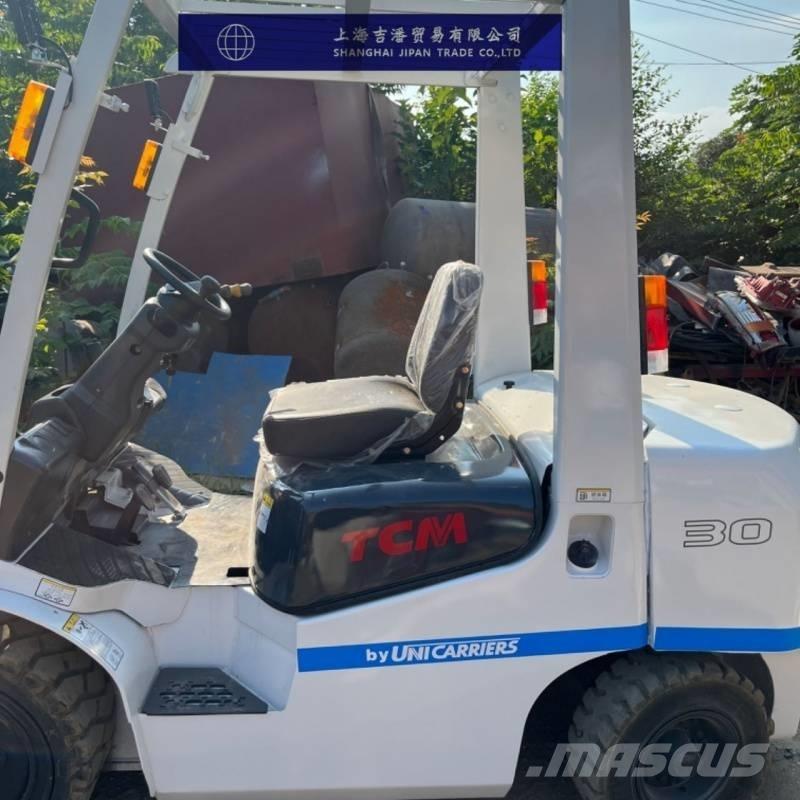

TCM FD 30

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic parameters Rated load capacity: 3000kg Load center distance: 500mm Gantry type: Two-section gantry Dimensional parameters Total length (excluding forks):approximately 2705mm Full width: approximately 1225mm Full height (top guard frame):approximately 2090mm Wheelbase: Approximately 1700mm Track: Approximately 1000mm Minimum ground clearance (at the mast):approximately 97mm Performance parameters Maximum lifting height:3000 mm / 3500 mm / 4000 mm / 4500 mm, and other optional Free lifting height: approximately 165mm Mast inclination Angle (front/back):6°/12° Lifting speed: approximately 450mm/s when fully loaded, slightly faster when unloaded Descent speed: approximately 470mm/s when fully loaded, slightly faster when unloaded Maximum driving speed (full load/empty load):18/19km/h Maximum traction force (full load/empty load):> 17kN/13kN Full-load climbing gradient:15%-20% Minimum turning radius: approximately 2400mm Power system parameters Power type: Diesel Engine model: Deutz Rated power: 37kW/ 2650R.P. Rated torque: 148N·m/1800 R.P. Number of cylinders:4 Displacement: 2540cc Fuel tank capacity:70 liters Fork parameters Fork length: Available in multiple options such as 1070mm/1500mm Fork width: 125mm Fork height: 45mm Fork adjustment method: Manual adjustment Fork adjustment range (maximum/minimum):1060mm/250mm Tire parameters Tire type: Pneumatic tires or solid tires, with Cheng Shin pneumatic tires being the most common Other parameters Self-weight: Approximately 4,000-4,500 kg
