Rinieri EB 1532 4

Cijena isklj. PDV

Images5
Rinieri EB 1532 4 Priključci za prednji utovarivač
Rinieri EB 1532 4 Priključci za prednji utovarivač
Rinieri EB 1532 4 Priključci za prednji utovarivač
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Priključci za prednji utovarivač
Marka / model
Rinieri EB 1532 4
Godina proizvodnje
2015
Dodatne opcije
Ex izložbeni model
Lokacija stroja
Degeberga
Država
Švedska
Opća ocjena
1
2
3
4
5
Mascus ID
ED5802F0

CIJENE

Izaberite valutu

DETALJI

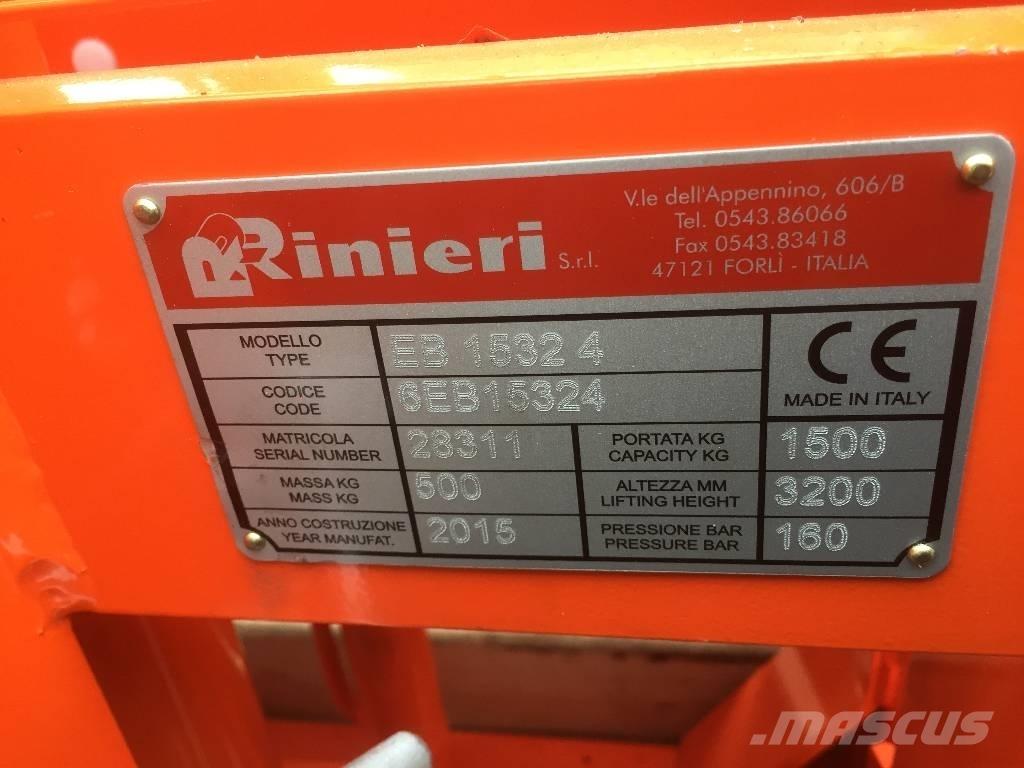

Inventarni broj
6EB15324
Tip dodatne opreme
Vile za sjeno
Serijski broj
28311
Transportna masa
500 kg
Podaci o stanju/jamstvo
Ingen
Zemlja proizvodnje
Italija
Ostale informacije

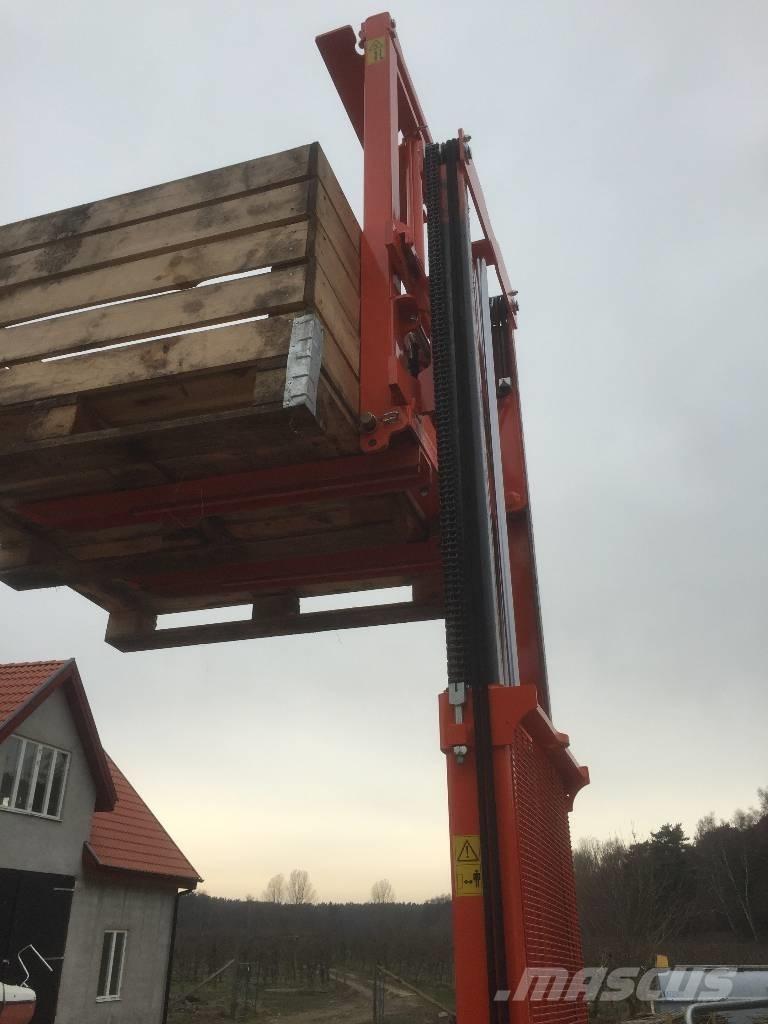

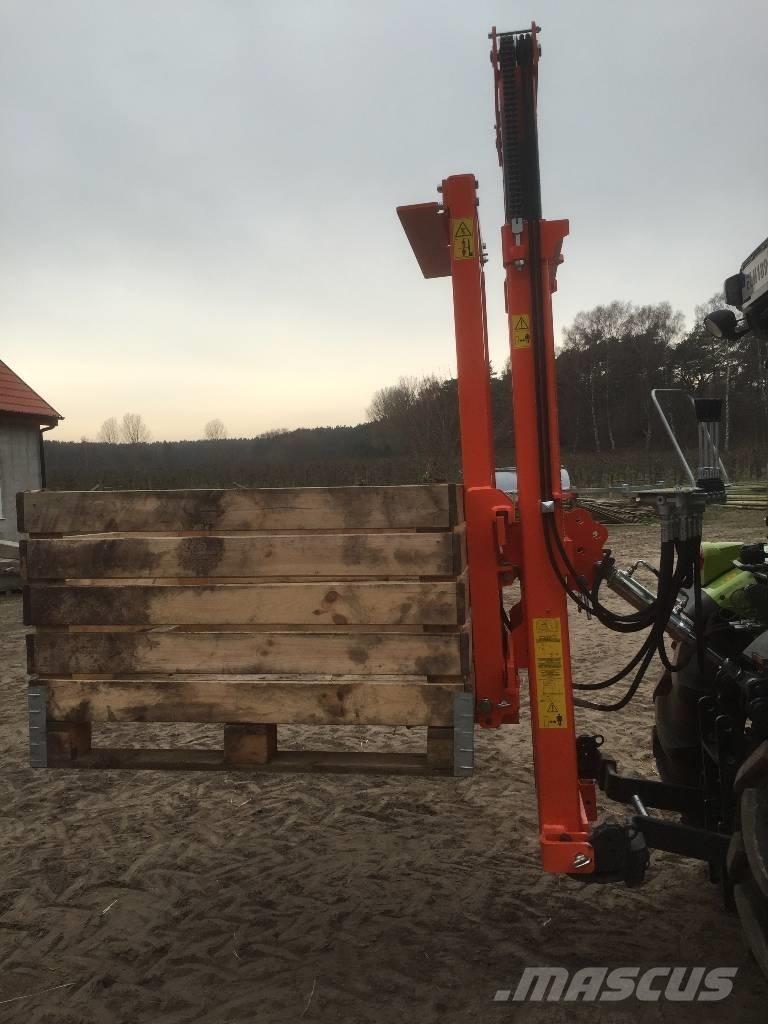

Elevators with hydraulic distributor are specially designed for tractors with three-point linkage through pivot and a shreaded arm. The elevator can function by means of distributor with levers. The needed thrust is setted on by the hydraulic system of the tractor. The elevation function is enabled by action on the hydraulic cylinder togheter with the vertical rods that make the truck slide through the chains. The elevator is equipped with reclining loading forks and security chain for the operator. On demand the folding bins locking is available, the cylinder for folding bins locking the cylinder for the tilting which replaces the threaded arm, the cylinder for the shifting. Specification: Capacity load Max (kg): 1500 Max Elevation (mm) : 3200 Max With (mm): 700 Total With (mm): 840 Side shifting (mm): 100-100 Coupling Height from the ground (mm): 500 Gripper Min. H / Max. H (mm) : 1400 / 2600 Overall dimensions of the mast installed on the tractor (mm): 2410 Hydraulic movements: Lifting + Tilting + Side shift + Bins lockingPrikaži više

Callenbring & CO AB

Julebodavägen 13 29795 Degeberga Skåne län Švedska
