Sany STC800T6

Cijena isklj. PDV

Images9Videos2
Sany STC800T6 Utovorne dizalice, vitla i dizala za materijal
Sany STC800T6 Utovorne dizalice, vitla i dizala za materijal
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Utovorne dizalice, vitla i dizala za materijal
Marka / model
Sany STC800T6
Godina proizvodnje
2020
Satovi korištenja
1.000 h
Dodatne opcije
Obnovljeno
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
1E67F0D4

CIJENE

Izaberite valutu

DETALJI

Maks. kapacitet dizanja
80.000 kg
Bruto težina
20.000 kg
Emisijski razred
Faza IIA
Izvorna boja
Orange and red
Engine manufacturer
SANY
Transportne dimenzije (DxŠxV)
1501838.8 m
Zemlja proizvodnje
Kina
Uvjeti isporuke
FOB, CIF
Certifikati
EPA, CE, TÜV
Ostale informacije

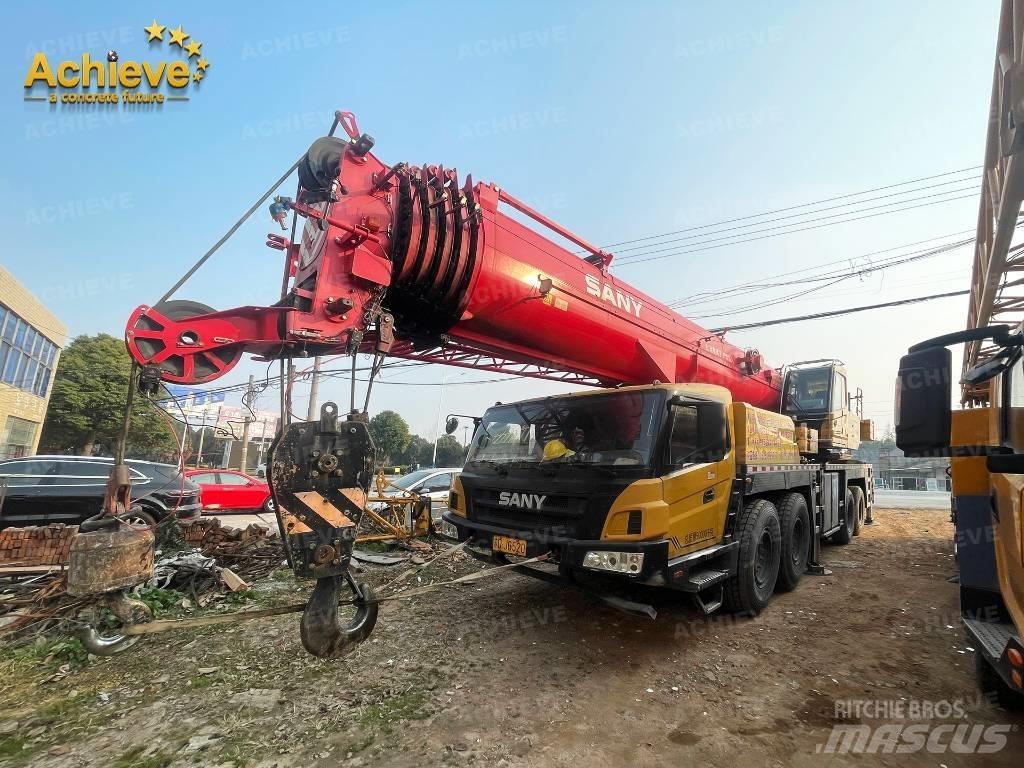

【ACHIEVE】TOP CONDITION!!! ACHIEVE 2020 SANY Stc800t6 used sany 80 tons Hydraulic Truck Crane STC800T6 SANY Truck Crane 80 Tons Lifting Capacity Performance parameters Maximum lifting height 78m Maximum lifting moment 3410.4kN·m Maximum lifting capacity 80t Speed parameter Maximum single rope speed of main winch 130m/min Full extension of boom/Shorten time 125/130s Full lifting of boom/Fall time 60/90s Maximum giant slalom speed 1.8r/min Weight parameters Total weight of complete machine 50000kg Maximum counterweight 20.2t Dimensional parameters Overall length of the machine 15000mm Full width of the whole machine 2800mm Full height of the whole machine 3880mm Outrigger span（HorizontalxLongitudinal） 8x6.43m Dynamic parameters Engine model WeichaiWP12.400E62(CountryVI) Maximum engine power 294/1900kW/rpm Maximum output torque of engine 2000/(1000-1400)N·m/rpm Driving parameters Maximum travel speed 90km/h Minimum Turning Radius 12m Maximum climbing gradient 0.45 Angle of approach 18° Departure angle 14° Minimum ground clearance 310mm MAX. CAPACITY (Outriggers) - 80 Tonnes at 3m Radius (75% Rating) 3600 Slew BOOM - 5 SECTION U shaped 11.8m - 45.0m MAX. ROAD SPEED -80 km/hr CARRIER - 8x4 Drive MAX. ROAD SPEED - 85 km The Sany STC800T6 is a hydraulic truck crane known for its exceptional lifting capacity and reliability. Equipped with a 6-section large cross-section U-shaped main boom that extends up to an impressive 57.6 meters and a fixed jib of 27 meters, it boasts the longest reach in the industry. Its lifting performance surpasses its competitors with an 8-meter wide lateral outrigger span and a full counterweight of 20 tons, ensuring stable and powerful lifting capabilities. The chassis of the STC800T6 is designed for high load-carrying capacity. With a new 2.8-meter wide chassis and an enhanced rectangular frame, it provides comprehensive anti-torsion and anti-bending capabilities. Powered by a robust Weichai WP12 engine and equipped with a FAST 10-speed synchronized transmission and HanDe heavy-duty axles, the crane can easily handle slopes with a maximum climbing slope of 45%. Additionally, it achieves impressive fuel efficiency, consuming only 44 liters of fuel per 100 kilometers. Excellent and stable chassis performance /chassis system Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance. Engine has the multimode power output function, which reduces power consumption. The use of tipping over early-warning technology provides high stability and safety of the overall operation. Highly efficient, stable, energy-saving and adjustable hydraulic system Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design is adopted to ensure stable braking operation. Ultra long, super strong and highly sensitive load lifting capacity Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine. Safe, stable, advanced and intelligent electric control system Self-developed controller SYMC specially for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real-time. The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a omprehensive logic and interlock control, thus ensuring more safe and reliable operation.Prikaži više

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
