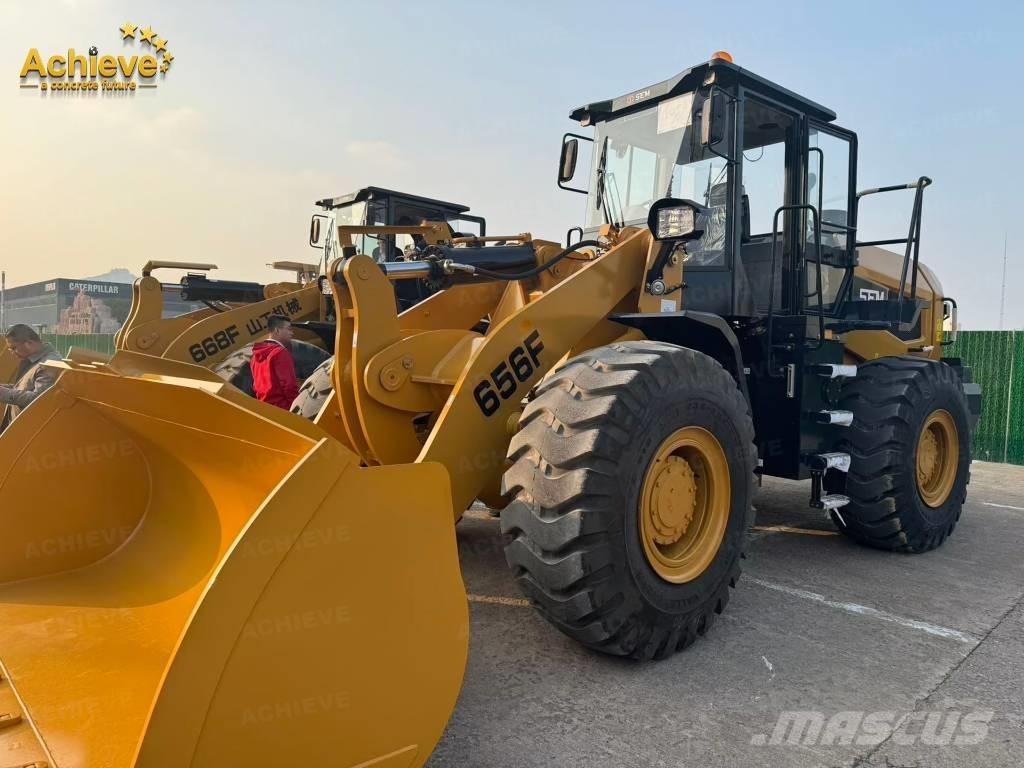

SEM 656F
Cijena isklj. PDV
Ispis
INFO
Grupa proizvoda / vozila
Utovarivači na kotačima
Marka / model
SEM 656F
Godina proizvodnje
2024
Satovi korištenja
2.000 h
Dodatne opcije
Obnovljeno,Remontovano
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
24FBDD7F
CIJENE
Izaberite valutu
DETALJI
Inventarni broj
QFSEM010
Marka kontejnerskog hvatača
Dizel
Bruto težina
17.385 kg
Maks. kapacitet dizanja
5.500 kg
Tip sanduka
Fiksni okvir
Tip kabine
Zatvorena kabina
Motor
WD10G220E23
Kapacitet spremnika
5 m3
Snaga motora
162 kW (220 KS)
Transportne dimenzije (DxŠxV)
8472 x 3117 x 3465 mm
Izvorna boja
yellow
Zemlja proizvodnje
Kina
Uvjeti isporuke
FOB, CIF
Certifikati
EPA, CE, TÜV
Dodatna oprema
Hidraulička spojnica
GPS
Rešetkasta korpa
Standardna korpa za kopanje
Ostale informacije
Model
Model SEM 656F
Main Specifications
Rated Load 5,500kg
Operating Weight with Standard Bucket 17,385kg
Bucket Capacity 2.6-5m³
Wheel Base 3,350mm
Overall Dimension 8,472*3,117*3,465mm
Max. Drawbar Force 170kN
Breakout Force 161kN
Dump Clearance 2,991mm
B-Pin Height 4,162mm
Transmission
Transmission Type Countershaft, power shift
Transmission Gears F4/R4
Torque Converter Type Single stage, 3 elements
Forward I/Reverse I 7.6/7.6
Forward II/Reverse II 14/14
Forward III/Reverse III 22/22
Forward IV/Reverse IV 39/39
Maker & Type TR200
Axle (Axle, Tire & Brakes)
Main Drive Type Spiral bevel gear, single stage
Final Drive Reduction Type Planetary type, single stage
Rear- oscillation +/- ±11
Engine
Engine Model WD10G220E23
Rated Power 162kW
Rated Speed 2,000r/min
Displacement 9.7L
Implement Hydraulic System
Implement System Type Open center flow sharing
Boom Raise Time 5.13s
Hydraulic Cycle Time 9.3s
System Pressure Setting 17MPa
Brake System
Service Brake Dry&caliper, air to oil control
Parking Brake Drum/Shoe
Steering System
System Type Load sensing
Steering Pump Type Gear pump
System Pressure Setting 16MPa
Steering Angle (L/R) 38±1
Tires
Size 23.5-25
Type Bias
Layer 16
Textured Type L-3
Achieve Innovations
5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kina
