SmartTEH ST-20/750

Cijena isklj. PDV

Pitaj za cijenu

Compnay LOGO
Images9

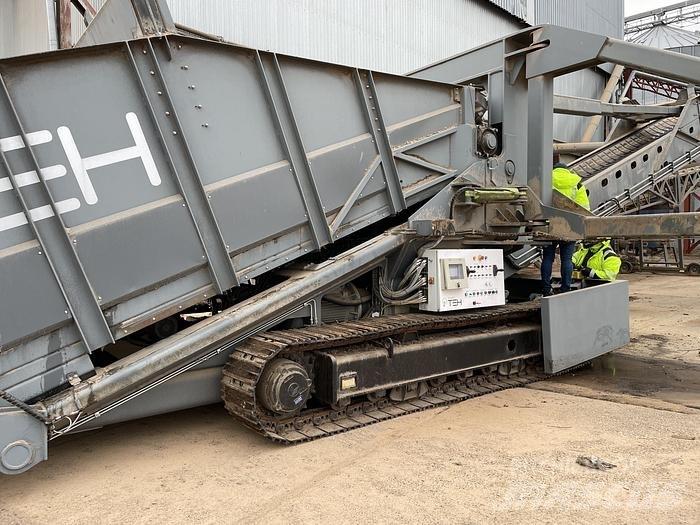

SmartTEH ST-20/750 Transportne trake
SmartTEH ST-20/750 Transportne trake
SmartTEH ST-20/750 Transportne trake
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Transportne trake
Marka / model
SmartTEH ST-20/750
Godina proizvodnje
2019
Satovi korištenja
220 h
Dodatne opcije
Ex izložbeni model
Država
Latvija
Opća ocjena
1
2
3
4
5
Mascus ID
055DF23C

DETALJI

Broj prijašnjih vlasnika
1
Evidencija svih servisa
Da
Bruto težina
40.000 kg
Tip kretanja
Mobilni
Kapacitet obrade
750 tn/h
Motor
diesel type KDI
Engine manufacturer
Kohler
Transportne dimenzije (DxŠxV)
28.5 x 3.9 x 3.85 mm
Zemlja proizvodnje
Latvija
Uvjeti isporuke
EXW
Dodatna oprema
remote control, remote diagnistics
Dodatna oprema
kontrolni sustav
Ostale informacije
Mobile radial stacker/feeder, or shiploader. Designed for material of bulk density of 750 kg/cbm, equipped with wireless remote control and touchscreen control panel. Diesel engine is used for travelling, and electrical power is necessary for all the other functions. Maximum capacity with boom lifting angle at 2 degrees is 1150 cbm/h; maximum with boom angle of 27 degrees is 720 cbm/h. It is equipped with two outriggers, capable of supporting operation with boom turned to either side. Boom maximum angle of turn is 60 degrees to both sides, or 17 meters from one side to another. Maximum boom height is 12 meters, or 27 degrees. Boom is foldable. Shiploader is equipped with crawlers, maximum travelling speed is 220 m/h. Feed hopper can be lifted up till 6.5 degrees, hopper sides can be tilted upwards to facilitate feeding of material to conveyor 1. Conveyor 1 (receiving from hopper and delivering to boom conveyor) is speed-regulated, depending on amount of material and to prevent from overfeeding of boom conveyor. All main bearings have temperature measuring and monitoring system. There is a remote connection available via mobile cellular network, which allows the manufacturer to assist with errors and troubleshooting. Apart from possibility of receiving material directly from trucks, the shiploader can be used with feeding system of any kind, like extra conveyors or wheel loaders, etc. Video: https://cloud.aquila-harborcranes.com/s/bJFgyCCzXJMN2mK Photo: https://cloud.aquila-harborcranes.com/s/itz6B6ecnnHzZAFPrikaži više

Aquila Harbor Cranes SIA

Getlinu 7A LV-2121 Rumbula Stopiņu novads Latvija
