INFO

Grupa proizvoda / vozila
Transportne trake
Marka / model
PULSEROLLER
Godina proizvodnje
2012
Lokacija stroja
Langley
Država
Kanada
Mascus ID
0A36C2E4

CIJENE

Izaberite valutu

DETALJI

Inventarni broj
56224
Ostale informacije

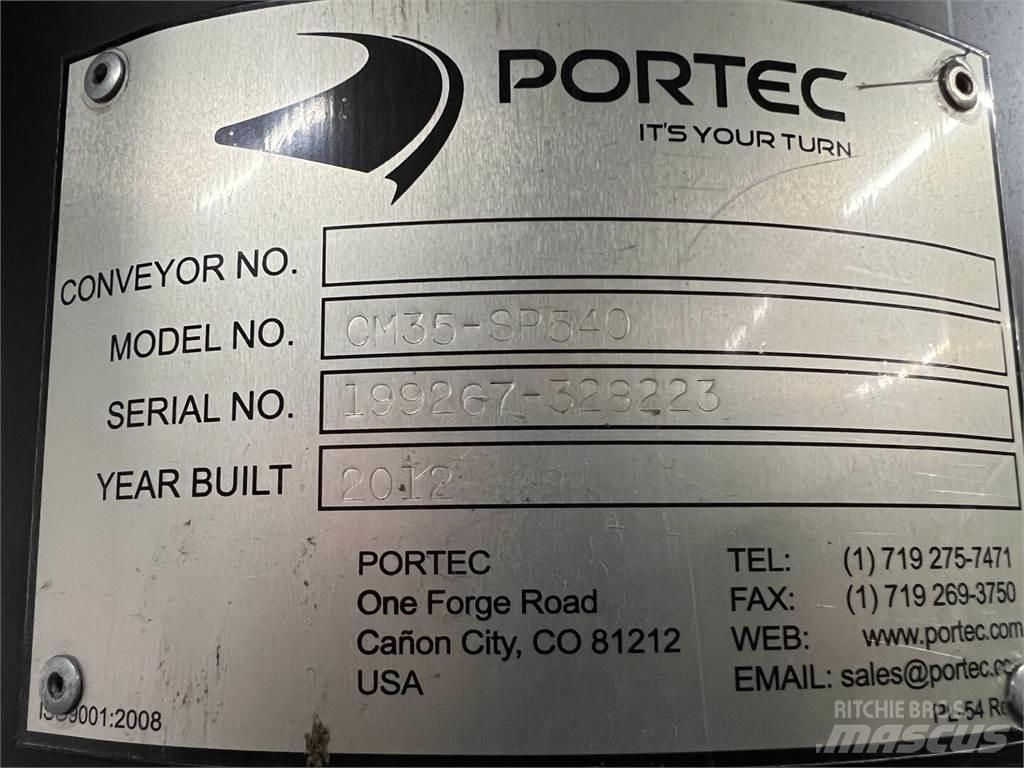

Title: Roller Conveyor System w/ Motorized Sections, Vertical Lift, Spiral Chute SKU: 56224 Year: 2012 Condition: Used GeneralApplication:Warehouse Conveyor Type:Roller Conveyor Width:21.5" ElectricalVoltage:480volts Phase:3-phase Features - 4 Motorized Conveyor Rollers (MDR) per 10 ft. conveyor section - 2 MDR Control Cards per 10 ft. section - 12 ft. Vertical Lift - 10 ft. Portec Spiral Chute [Video Link 1](... Link 2](... Link 3](... Diagram Current System](... Inventory List (Current System and Additional Parts) - 12 x 21.5 Pulse Roll Conveyor Section: 2 qty - 18 x 21.5 Pulse Roll Conveyor Section: 1 qty - 4 x 21.5 Pulse Roll Conveyor Section: 1 qty - 24 x 21.5 Pulse Roll Conveyor Section: 3 qty - 48 x 21.5 Pulse Roll Conveyor Section: 1 qty - 60 x 21.5 Pulse Roll Conveyor Section: 9 qty - 72 x 21.5 Pulse Roll Conveyor Section: 9 qty - 78 x 21.5 Pulse Roll Conveyor Section: 2 qty - 96 x 21.5 Pulse Roll Conveyor Section: 2 qty - 120 x 21.5 Pulse Roll Conveyor Section: 66 qty - 30 Degree Pulse Roll Curve Section: 1 qty - 45 Degree Pulse Roll Curve Section: 2 qty - 60 Degree Pulse Roll Curve Section: 2 qty - 90 Degree Pulse Roll Curve Section: 8 qty - 30 Degree Merge Pulse Roll Merge Conveyor Section: 2 qty - 60 Degree L/H Pulse Roll Merge Conveyor Section: 1 qty - 72 x 21.5 Spring Return Pulse Roll Gate: 10 qty - Power Supply 480VAC - 24VDC: 21 qty - Transformer 600V - 480V 3ph: 21 qty - 12' Vertical Reciprocating Conveyor Lift: 1 qty - 10' Portec Spiral Chute: 1 qty - 24 - 30 Leg Sets: 109 qty - 72 Duplex Legs: 13 qty MDR Power Supply Voltage AC: 480 V Voltage DC: 24 V Phase: 3 Hertz: 60 Transformer kVA: 2 Phase: 3 Primary Voltage: 600/480 V Secondary: 480Y/277 V 12 ft. Vertical Lift Motor: 1.5 hp, 3-ph, 332/575 V, 3.36/1.94 A, 1660 rpm Gearbox Ratio: 11.39 YASKAWA Digital Operator: - Model: JVOP-180 - Electrical: 575 V, 3-ph, 2.7/1.7 A Main Panel Disconnect: 30 A, 575 V Spiral Chute Brand: Portec Model: OM35-SP540 Length: 10 ft.Prikaži više

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
