Unic B-506-5.2

Cijena isklj. PDV

Pitaj za cijenu

Compnay LOGO
Images2
Unic B-506-5.2 Mini dizalice
Unic B-506-5.2 Mini dizalice
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Mini dizalice
Marka / model
Unic B-506-5.2
Godina proizvodnje
2016
Satovi korištenja
767 h
Lokacija stroja
Duisburg, Nordrhein-Westfalen
Država
Njemačka
Opća ocjena
1
2
3
4
5
Mascus ID
470353FC

DETALJI

Broj prijašnjih vlasnika
1
Bruto težina
5.150 kg
Maks. kapacitet dizanja
5.000 kg
Boom duljina
1.570 cm
Maks. nosivost na kraju prečke
900 kg
Maksimalna visina dizanja
1.570 cm
Nosivost
1.900 cm
Visina dizalice - horizontalni krak
1.600 cm
Visina dizalice - zglobni krak
300 cm
Transportne dimenzije (DxŠxV)
4870 x 1400 x 2035 mm
Marka guma
NM-Antriebsketten
Zemlja proizvodnje
Japan
Uvjeti isporuke
FCA, CFR, EXW
Certifikati
CE, TÜV
Dodatna oprema
Blokovi kuka
3-rollig, max. 5,0 t 1-rollig, max. 1,7 t Einseilhaken, max 0,9 t
Ostale informacije

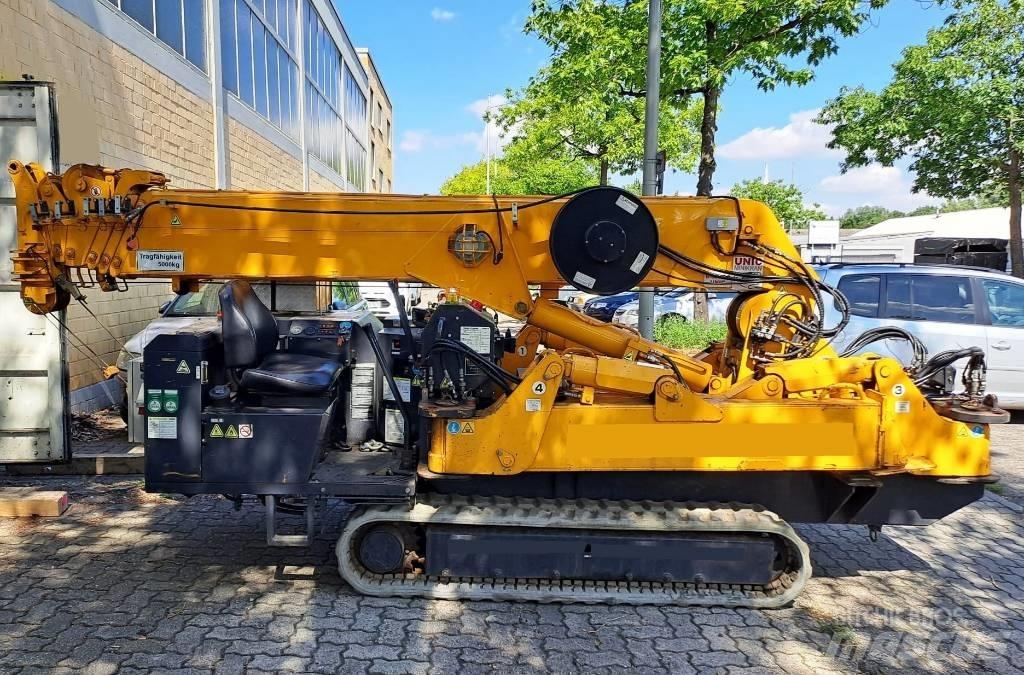

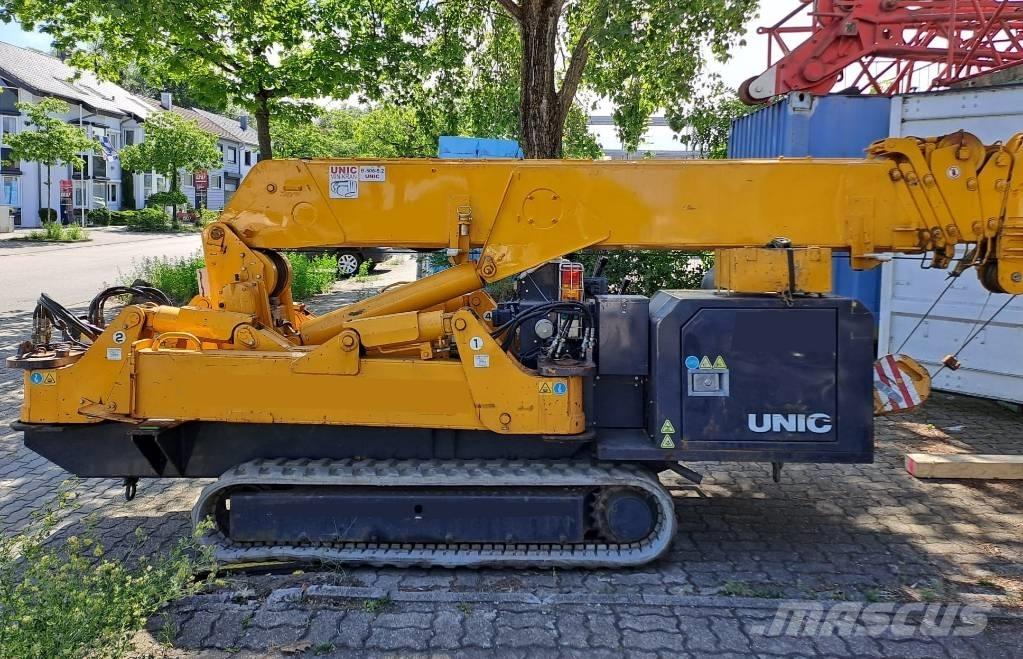

UNIC mini crawler crane, model B-506-5.2, year 2016, (used) only 767 h working hours incl. German DEKRA approval max. loading capacity 5,0 t TECHNICAL DETAILS: Max. Loading 5.0 t x 2.0 m Max. Hook height 19.0 m Max. Working area 16.5 m Dimensions: length 4870 mm (L) x 1400 mm (W) x 2035 mm (H) Weight approx. 5.150 kg STANDARD EQUIPMENT: 3.93 – 15.71 m telescopic main boom fully hydraulic Boom head with 3-sheaves 3,0 m folding jib with sheave head and searcher hook, max. 850 kg, hydr. adjustable 0-20° 1,0 m jib, max. 1,7 t, hydr. adjustable 0-20° 1x hoist winch German rope, low-spin, fine braided 360 ° rotation range (continuous), Diesel engine 18 kW (24,5 HP) Electric drive 380 V (AC 50/60 Hz, power 7,5 kW) with cable 50,0 m Radio remote control Safe load indicator Rayco Wylie Systems i4500 Variable footprint, computer controlled, variable positioning of each outrigger length (mininum, half, maximum), automatic detection of the outrigger position and calculation of the max. load of each outrigger Overwinding alarm, computer controlled intelligent voice warning system working lights, driver´s seat, Hydrostatic drive, step-less forward and reverse Speed 0 – 3,0 km/h, Track ground length 1.800 mm, Track ground width 300 mm Track ground pressure 0,46 kg/cm2 Hook block 3-sheaves, max. loading capacity 5,0 t Hook block 1-sheave, max. loading capacity 1,7 t Ball, max. loading capacity 900 kg Superstructure yellow, Chassis Black-grey Ideal for limited work areas or confined access to the work area and an intelligent solution and alternative to the conventional mobile crane (large crane) Various mini crane models with lifting capacities of 0.99 - 10.0 t lifting heights up to 31.0 m Used mini crane models on demand until 8.0 t loading capacity.Prikaži više

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Njemačka
