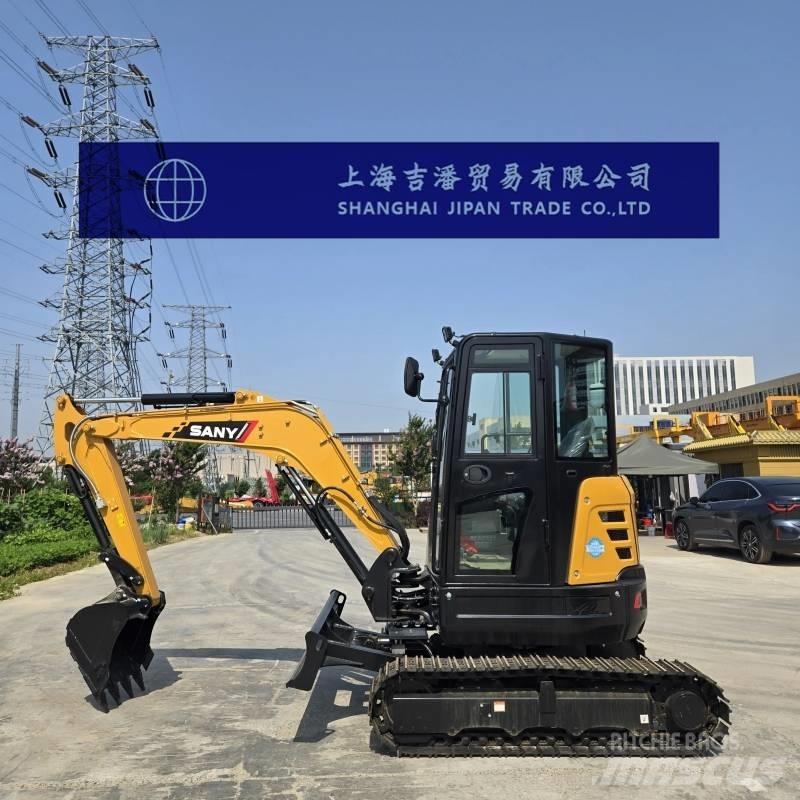

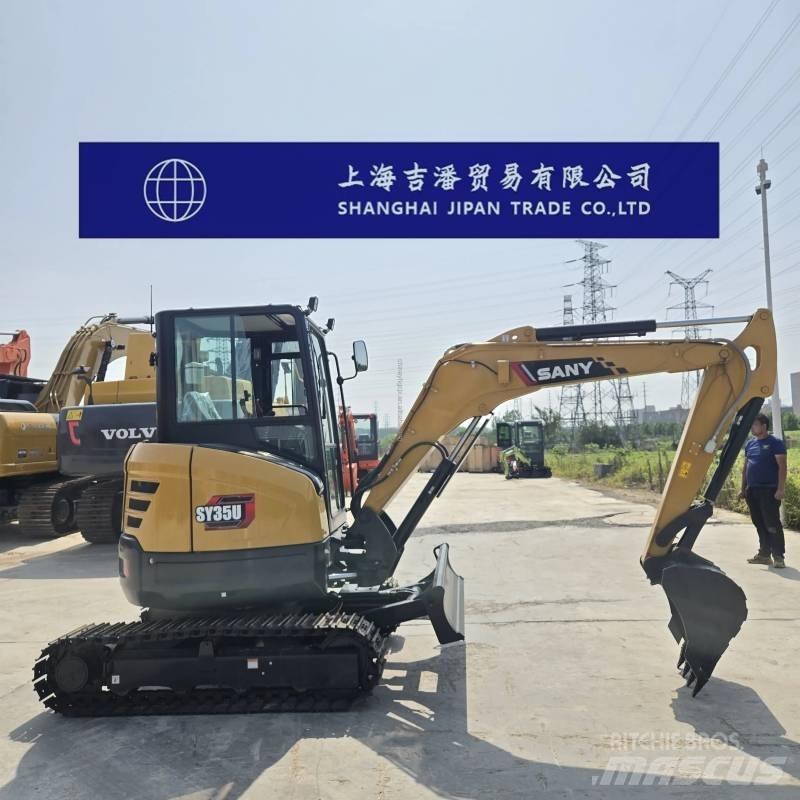

Sany SY 35 U

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Sany SY35U excavator Specification Power Traditional Power Domestic manufacturer Bucket backhoe Tonnage (tons)3 The working weight of the entire machine (kg) is 3780 Bucket capacity (m³) : 0.06-0.15(0.12) Performance Rotational speed (rpm)9 Walking speed (km/h) : 4.4/2.4 Climbing ability (%)58 Ground specific pressure (Kpa)32 Bucket digging force (kN)30.4 The digging force of the bucket arm (kN) is 18.2 Power system Engine model: Yanmar 3TNV88 Stages3A EPA int4 Rated power (kw/rpm)20.4/2200 Maximum torque (N.m) : 107/1300 Displacement (L)1.642 The cooling method is water cooling Oil capacity Fuel tank (L)40 Hydraulic oil tank (L)40 Engine oil change volume (L)6 Main body size The total transportation length (mm) is 4915 The total transportation width (mm) is 1720 The total transportation height (mm) is 2515 Track grounding length (mm) : 1670 The total length of the track (mm) is 2155 Track plate width (mm) : 300 Track gauge (mm) : 1420 Minimum ground clearance (mm) : 295 The rear end turning radius (mm) is 860 Number of idler wheels (single side) (units)1 Number of idler wheels (single side) (units)4 Scope of work Maximum excavation radius (mm) : 5465 Maximum excavation depth (mm) : 3105 Maximum excavation height (mm) : 4855 Maximum unloading height (mm) : 3460 Maximum vertical excavation depth (mm) : 2700 The bulldozer shovel lifts or deepens (mm)375/370
