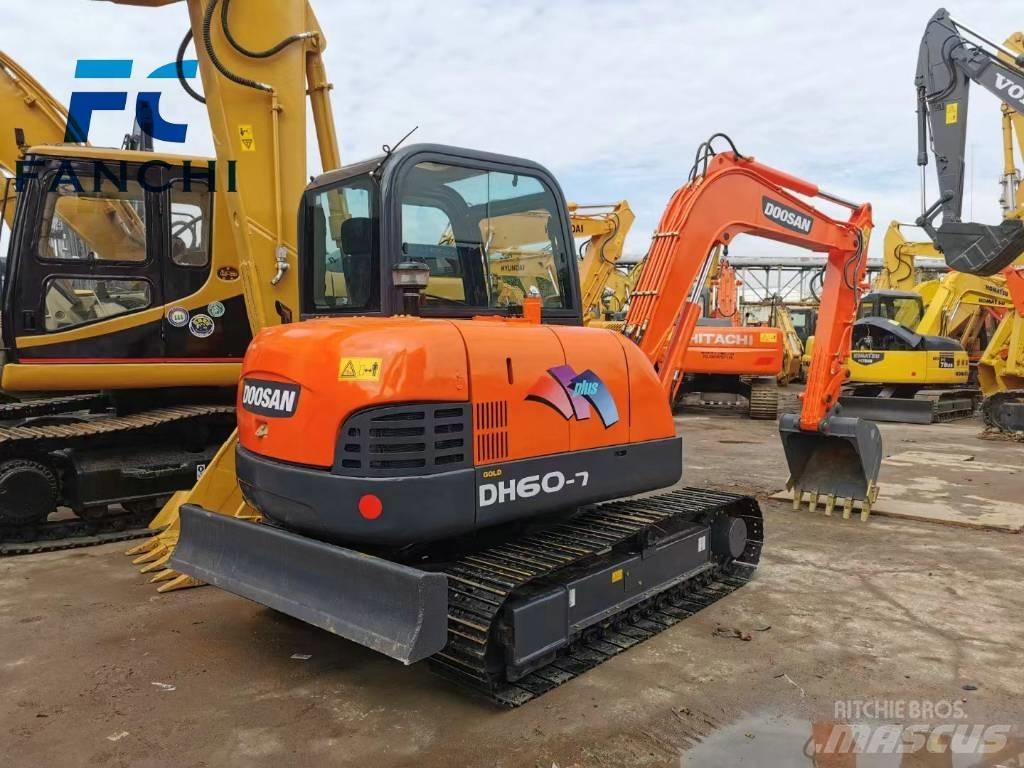

Doosan DH 60

Cijena isklj. PDV

Images9
Doosan DH 60 Mini bageri <7t
Doosan DH 60 Mini bageri <7t
Doosan DH 60 Mini bageri <7t
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Mini bageri <7t
Marka / model
Doosan DH 60
Godina proizvodnje
2023
Satovi korištenja
600 h
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
86AB9175

CIJENE

Izaberite valutu

DETALJI

Broj prijašnjih vlasnika
1
Stanje podvozja
good
Bruto težina
6.000 kg
Širina gusjenice
400 mm
Kapacitet spremnika
2 m3
Transportne dimenzije (DxŠxV)
585018802.575 m
Izvorna boja
YELLOW
Duljina palice
1.990 mm

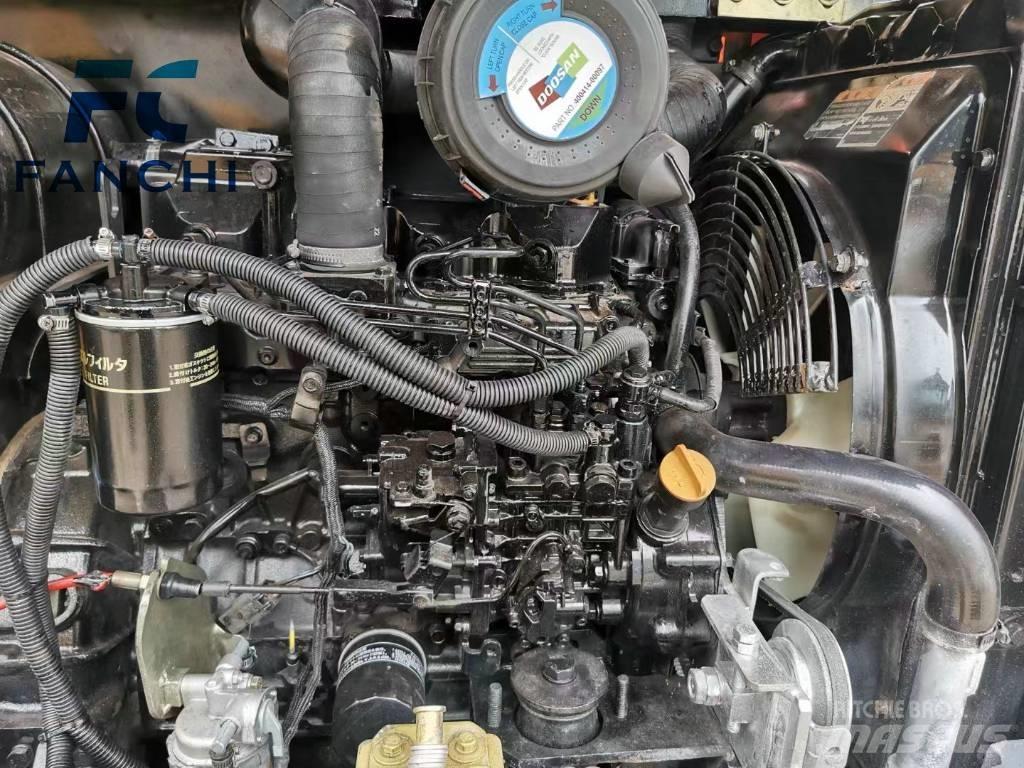

Motor
洋马 4TNV94L
Snaga motora
38,1 kW (51,8 KS)
Engine manufacturer
JAPAN
Podaci o stanju/jamstvo
good
Zemlja proizvodnje
Japan
Uvjeti isporuke
FOB, CIF, EXW
Certifikati
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Dodatna oprema
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Dodatna oprema
Hidraulička spojnica
funkcija hid. čekića/klješta
Žičana kutija
GPS
Prikaži više
Ostale informacije
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minPrikaži više

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Kina
