CAT CAT305.5E2

Cijena isklj. PDV

Images10

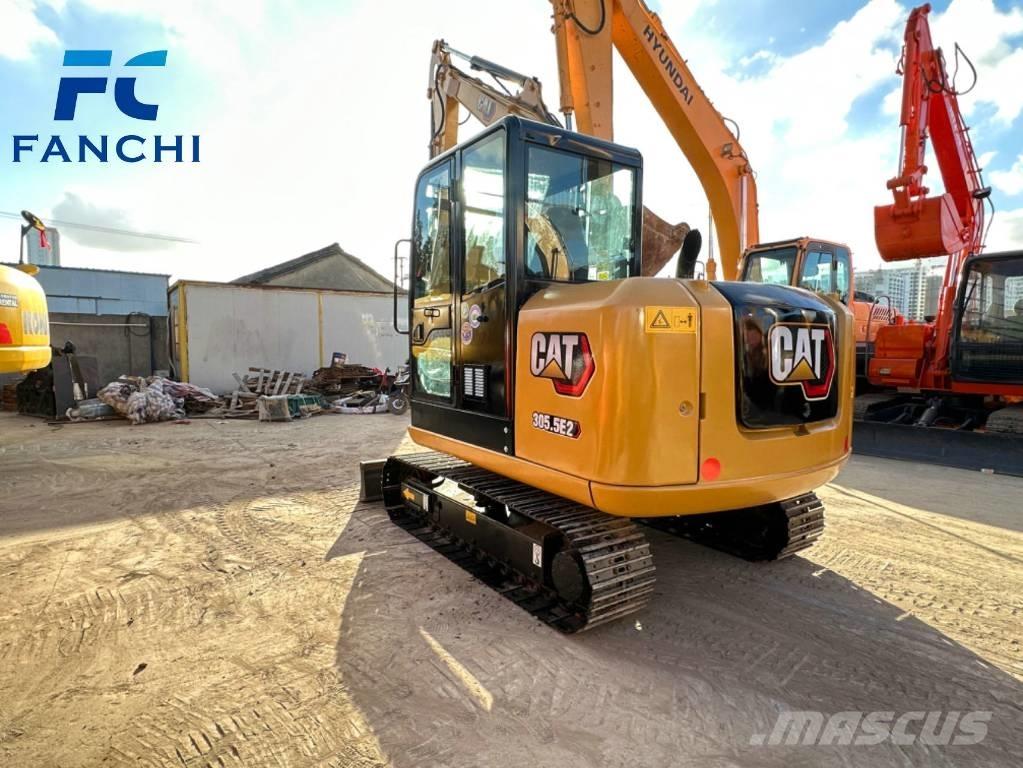

CAT CAT305.5E2 Mini bageri <7t
CAT CAT305.5E2 Mini bageri <7t
CAT CAT305.5E2 Mini bageri <7t
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Mini bageri <7t
Marka / model
CAT CAT305.5E2
Godina proizvodnje
2024
Satovi korištenja
450 h
Dodatne opcije
Remontovano
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
77BC2619

CIJENE

Izaberite valutu

DETALJI

Marka kontejnerskog hvatača
Dizel
Evidencija svih servisa
Da
Broj prijašnjih vlasnika
1
Stanje podvozja
good
Bruto težina
5.500 kg
Emisijski razred
Faza V
Širina gusjenice
400 mm
Kapacitet spremnika
0,22 m3
Transportne dimenzije (DxŠxV)
576519502.54 m
Izvorna boja
YELLOW
Duljina palice
960 mm
Motor
Cat C2.4 DI
Snaga motora
34,1 kW (46,4 KS)
Engine manufacturer
JAPAN
Podaci o stanju/jamstvo
good
Zemlja proizvodnje
Japan
Uvjeti isporuke
FOB, CIF, EXW
Certifikati
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Dodatna oprema
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Dodatna oprema
Žičana kutija
Klima-uređaj
Dodatna hidraulika
Ad blue
Prikaži više
Ostale informacije
The performance parameters of the Caterpillar CAT305.5E2 excavator are as follows: 1. **Overall Dimensions of the Machine** - Total transportation length: 5765mm, total transportation width: 1950mm, total transportation height: 2540mm, minimum ground clearance: 628mm, rear swing radius: 1580mm, total track length: 2440mm, track gauge: 1550mm, track shoe width: 400mm, center distance between idler wheels: 1920mm. 2. **Operating Weight** - The operating weight of the whole machine is 5400kg. 3. **Bucket Capacity** - The bucket capacity is 0.22 cubic meters. 4. **Power System** - Engine model: Cat C2.4 DI, rated power: 34.1kW, cylinder bore: 87mm, stroke: 102.4mm, displacement: 2.4L. 5. **Performance Parameters** - Swing speed: 10.5rpm. - Gradability: 50%. - Bucket digging force: 35.0kN. - Stick digging force: 27.2kN. - Maximum drawbar pull: 40.2kN. - Travel speed: 4.3/2.8km/h. - Swing torque: 13.9N·m. 6. **Hydraulic System** - Maximum main pump flow: 140L/min. The type of the main pump is a load sensing hydraulic system equipped with a variable displacement piston pump, and the working hydraulic circuit pressure is 25MPa. 7. **Oil Capacity** - Fuel tank: 78L, hydraulic oil tank: 58L, engine oil change capacity: 9.5L, coolant: 9.8L. 8. **Working Range** - Maximum digging radius: 5955mm. - Maximum digging depth: 3720mm. - Maximum digging height: 5460mm. - Maximum unloading height: 3835mm. - Maximum vertical digging depth: 2210mm. 9. **Bulldozer Blade Parameters** - Lifting or pushing depth: 365mm/480mm, width×height of the bulldozer blade: 1950mm×360mm.Prikaži više

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Kina
