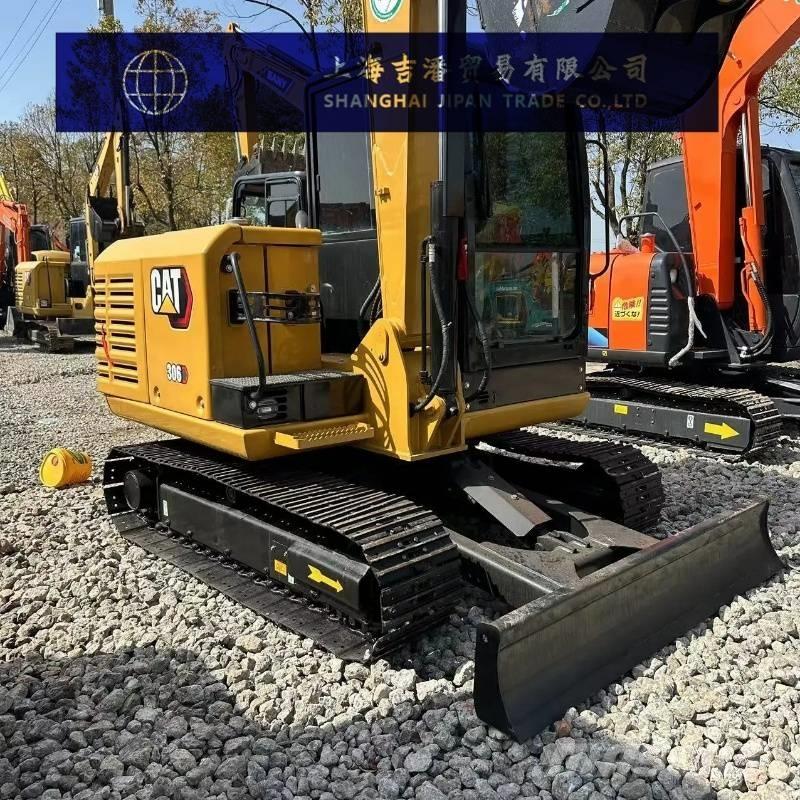

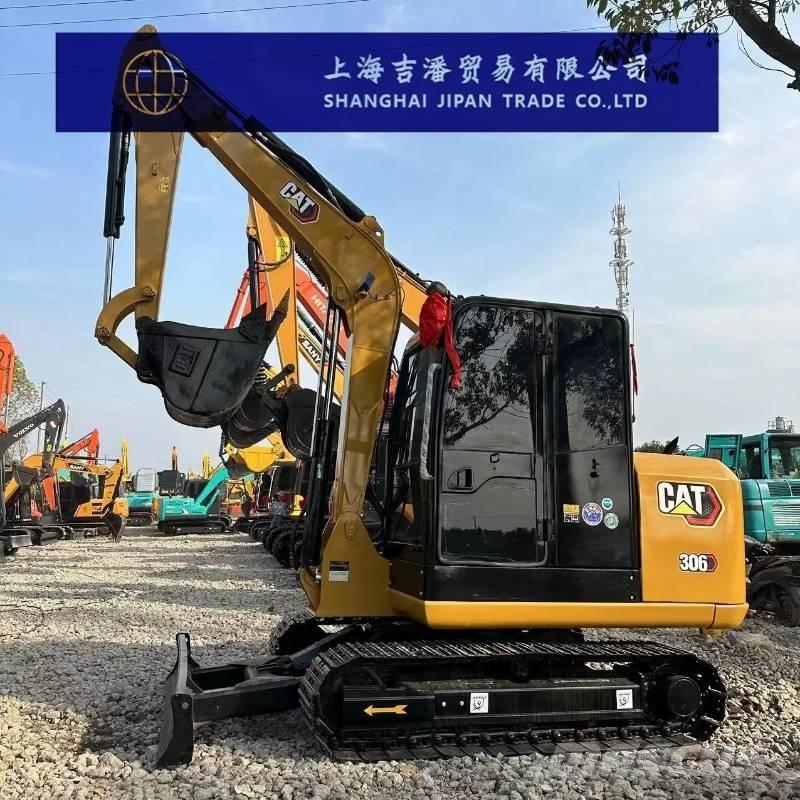

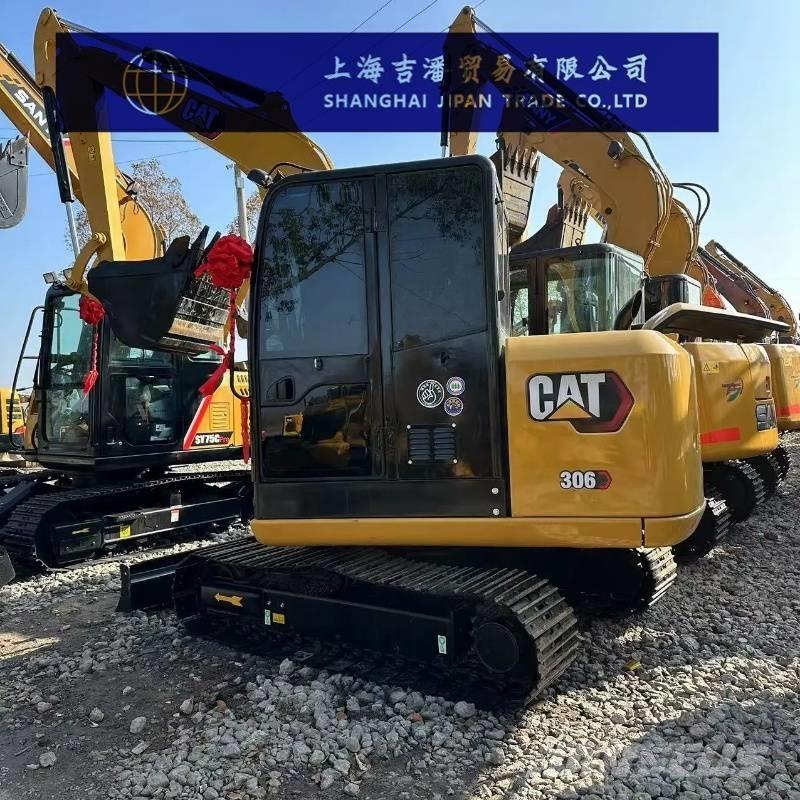

CAT 306

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

卡特彼勒CAT®306迷你型液压挖掘机 参数配置 规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)6 整机工作重量(kg)6175 铲斗容量(m³)UD 0.25 斗杆长度(mm)1650 性能 回转速度(rpm)11.3 行走速度(km/h)3.1~5.0 爬坡能力(%)30° 接地比压(Kpa)33.7 最大牵引力(kN)51 动力系统 发动机型号Cat® C2.4T 额定功率(kw/rpm)36.5/2400 排量(L)2.43 缸径×行程(mm)87*102 排放标准国Ⅳ 液压系统 主泵最大流量(l/min)151 工作液压油路(Mpa)25.2 行走液压回路(Mpa)25.2 回转液压回路(Mpa )21 油类容量 燃油箱(L)105 液压油箱(L)53 液压系统(L)104 发动机油更换量(L)9.5 冷却液(L )10 主体尺寸 运输总长度(mm)5789 运输总高度(mm)2206 驾驶室全高(mm)2540 履带板宽度(mm)400 最小离地间隙(mm )306 后端回转半径(mm )1585 作业范围 最大挖掘半径(mm)6090 停机面最大挖掘半径(mm)5975 最大挖掘深度(mm)3902 最大挖掘高度(mm)5490 最大卸载高度(mm)3870 最大垂直挖掘深度(mm)2414 推土板宽度×高度(mm)1980*375 推土铲举升或推深(mm)420/615
