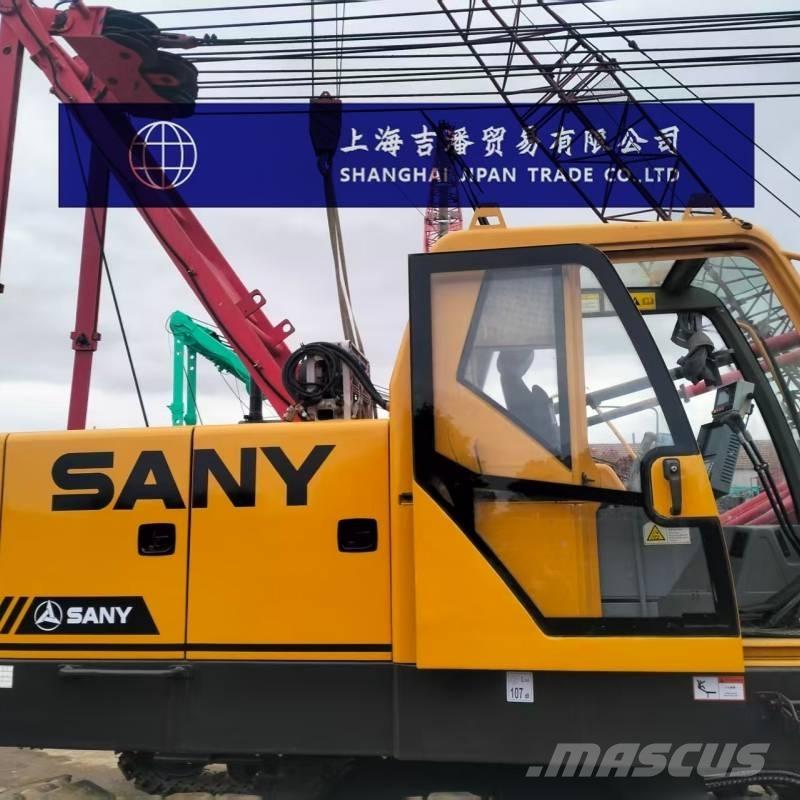

Sany SCC 550 C
Cijena isklj. PDV
Ispis
INFO
Grupa proizvoda / vozila
Kranovi sa gusjenicama
Marka / model
Sany SCC 550 C
Godina proizvodnje
2017
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
CA1BD735
CIJENE
Izaberite valutu
DETALJI
Inventarni broj
1
Tip dizala
Rešetke
Zadnji pregled
2025-10-09
Serijski broj
1
Broj prijašnjih vlasnika
1
Bruto težina
48.800 kg
Maks. kapacitet dizanja
50.000 kg
Registracijski broj
1
Maks. nosivost na kraju prečke
25.000 kg
Boom duljina
41 m
Emisijski razred
Faza V
Min boom length
3 m
Min luffing jib
3 m
Nosiva prečka
15 m
Maksimalna visina dizanja
15 m
Nosivost
92 m
Visina dizalice - horizontalni krak
14 m
Visina dizalice - zglobni krak
14 m
Tip dizalice
Nepomični krak dizalice
Izvorna boja
Original
Transportne dimenzije (DxŠxV)
12680 x 5100 x 3200 mm
Engine manufacturer
CUMMINS
Tip nosača
Sa gusjenicama
Podaci o stanju/jamstvo
Good
Preostale prednje gume / podvozje
98
Zemlja proizvodnje
Kina
Uvjeti isporuke
FCA, FOB, CIF, EXW
Certifikati
EPA, CE
Dodatna oprema
Fly Jib
Hook
Counter Weight
We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate.
We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality.
Contact: Jason
WhatsApp/Mobile:0086 13675656717
WeChat:+86 13675656717
Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.
Dodatna oprema
Blokovi kuka
Ostale informacije
Basic parameters
Lifting performance: It belongs to medium-tonnage crawler cranes ranging from 100t to 2000t.
Working weight: approximately 48.8 tons (without mast and hoist),64.6 tons (with mast and hoist).
Overall dimensions:Full width 5100mm,full height 3200mm.
Power system parameters
Engine model:QSB5.9-C210.
Displacement:5.9L.
Rated power:154kW/2200rpm
Maximum torque:820N·m/1400rpm.
Lifting performance parameters
Maximum lifting moment:2359t·m.
The maximum lifting capacity of the main boom:55t×3.7m=203t·m.
Main arm length:20-92 meters.
Main arm luffing Angle:30°-85°
Working speed parameter
Maximum single-rope speed of the hoist:125m/min.
Maximum rotational speed:2.5r/min.
Parameters of the hydraulic system
Main pump: A large-displacement open variable piston pump is adopted.
Gear pump: Double gear pump, used in rotary, cooling and control circuits.
System pressure: The maximum pressure of the main and auxiliary winches and the traveling system is 32MPa, that of the slewing system is 20MPa, and that of the control system is 4.5MPa.
Hydraulic oil tank capacity:460L.
Chassis and walking parameters
Track extension function:The maximum transportation width of the entire machine is 3.36 meters.
Walking speed:0-1.5km/h (reference value).
Climbing ability: approximately 40% (reference value).
Parameters of safety devices
Standard configuration: Functions such as off-machine stop action and emergency electrical control, with complete safety and monitoring devices.
Optional: Closed-circuit monitoring, electronic level
