Putzmeister M49-5

Cijena isklj. PDV

Images35Videos1

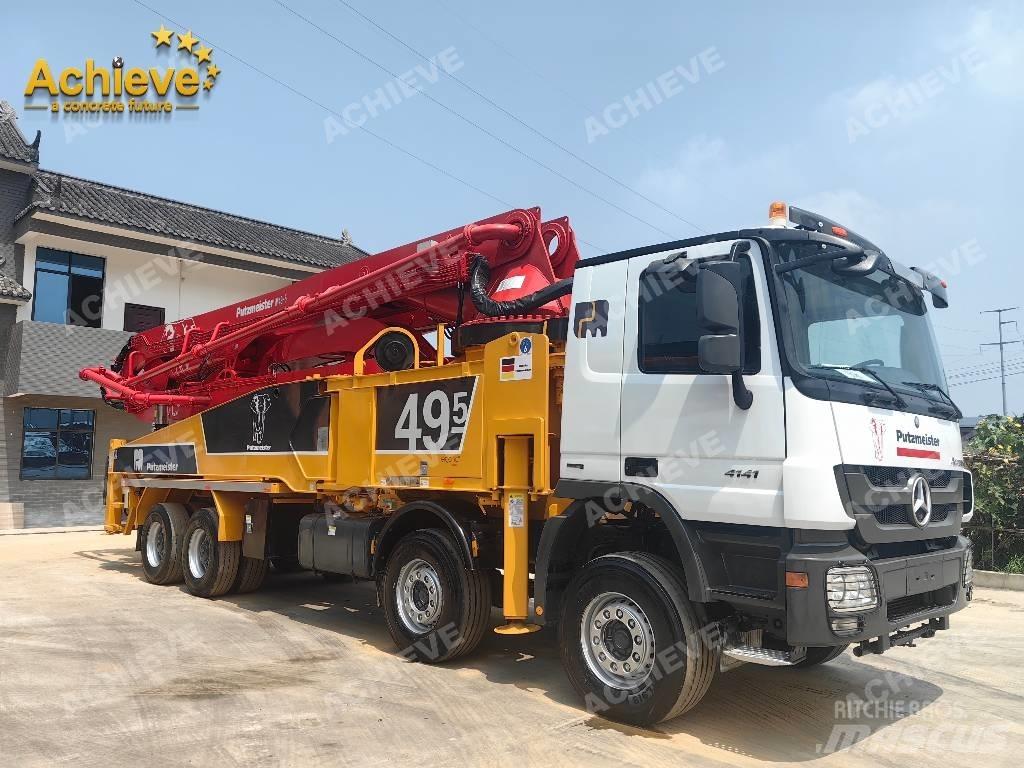

Putzmeister M49-5 Kamionske beton pumpe
Putzmeister M49-5 Kamionske beton pumpe
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Kamionske beton pumpe
Marka / model
Putzmeister M49-5
Godina proizvodnje
2013
Satovi korištenja
3.000 h
Dodatne opcije
Obnovljeno,Remontovano
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
8A178F24

CIJENE

Izaberite valutu

DETALJI

Inventarni broj
AICPT026
Broj boom sekcija
5
Zadnji pregled
2024-09-26
Bruto težina
32.000 kg
Boom duljina
400 cm
Maks. horizontalni doseg
3.730 cm
Maksimalni vertikalni domet
4.160 cm
Tip kretanja
Statični
Tip snage pumpe
Diesel
Snaga pumpe
300 kW
Transportne dimenzije (DxŠxV)
11500 x 2500 x 4200 mm
Emisijski razred
Faza V
Engine manufacturer
Mercedes Benz OM501LA.III/17
Vrsta pumpe
Klipna
Proizvođač šasije
Mercedes Benz
Marka guma
Mercedes Benz
Zemlja proizvodnje
Kina
Uvjeti isporuke
FOB, CIF
Certifikati
EPA, CE, TÜV
Dodatna oprema
Boom M 42-5 Sections 5 Reach height m 41.6 Horizontal reach gross m 37.3 net m 34.5 Reach depth max. m 31.0 Unfolding height m 8.6 End hose length m 4 Folding system RZ Delivery line DN 125 Pump BSF .16 H .17 i LS Rod side Output m³/h 160 - Delivery pressure bar 85 - Strokes 1/min. 31 - Piston side Output m³/h 108 170 Delivery pressure bar 130 85 Strokes 1/min. 21 27 Delivery cylinder Ø mm 230 250 Stroke mm 2100 2100
Ostale informacije
Truck-mounted concrete pump 49-5 Efficiency and flexibility on 4 axles Get ahead with 5 arms 49-5, this means a 49 m vertical reach distributed over 5 arms with a compact design in roll Z-folding system. 5 arms, this means a high degree of versatility. Optimized kinematics also ensures that there is no noticeable dead space. A placing boom in roll Z-folding system combines a compact design with a low unfolding height, optimum slip characteristics and the best use of the horizontal reach from the front edge of the truck. This means that you benefit from the advantages of the roll and of the Z-folding system in an economic way. Get closer to the action with less space requirement Set-up times can be kept as short as possible. With the TRDI support developed by Putzmeister, you save time and space, without compromising on safety. Double telescoping support legs can also be securely placed in minimal spaces between obstacles. Thanks to the optional One Side SupportPrikaži više
