INFO

Grupa proizvoda / vozila
Hidraulični čekići za nabijanje stupova
Marka / model
BSP HH6 LD
Godina proizvodnje
1998
Lokacija stroja
Etten Leur, Noord-Brabant
Država
Nizozemska
Opća ocjena
1
2
3
4
5
Mascus ID
3E85A9F3

CIJENE

Izaberite valutu

DETALJI

Zadnji pregled
2024-10-14
Broj prijašnjih vlasnika
1
Transportna masa
8.500 kg
Transportne dimenzije (DxŠxV)
5500 x 740 x 1110 mm
Podaci o stanju/jamstvo
warranty expired
Zemlja proizvodnje
Ujedinjeno Kraljevstvo
Uvjeti isporuke
EXW
Dodatna oprema
Leader guides for 720mm wide leader mast Hydraulic hose bundle Hoisting device for lifting the hammer Electronic cable Control box Drive cap for 30x30cm precast pile No manifold included
Ostale informacije

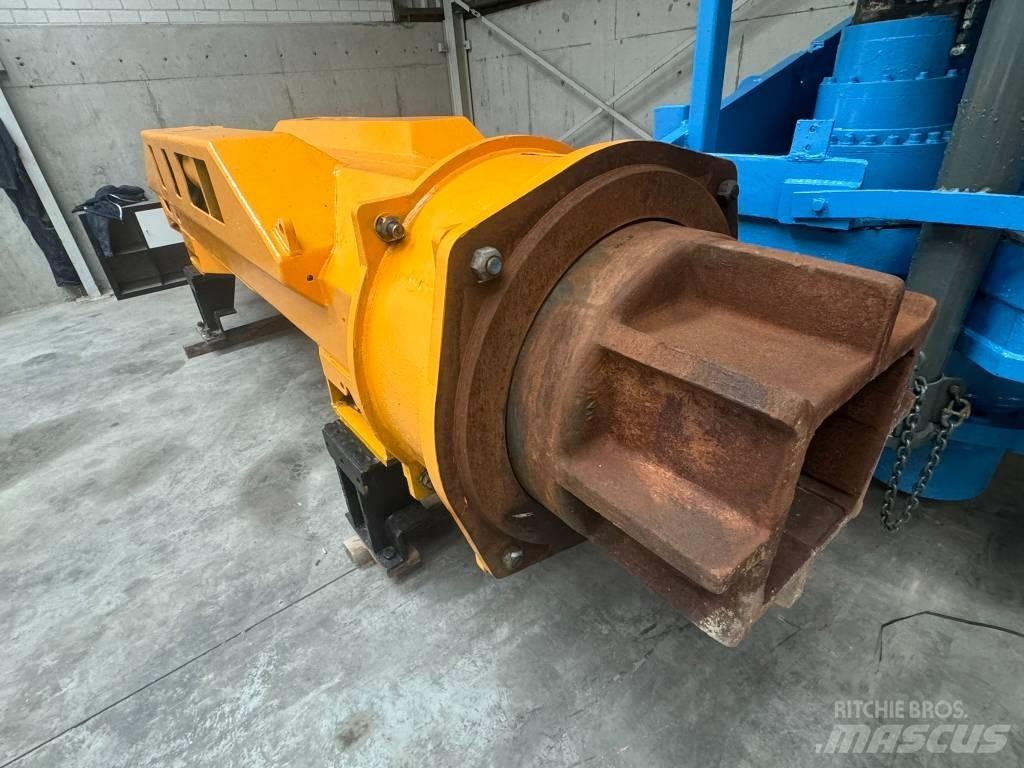

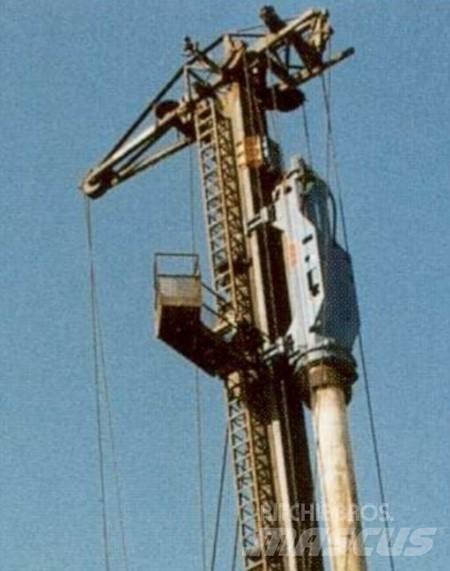

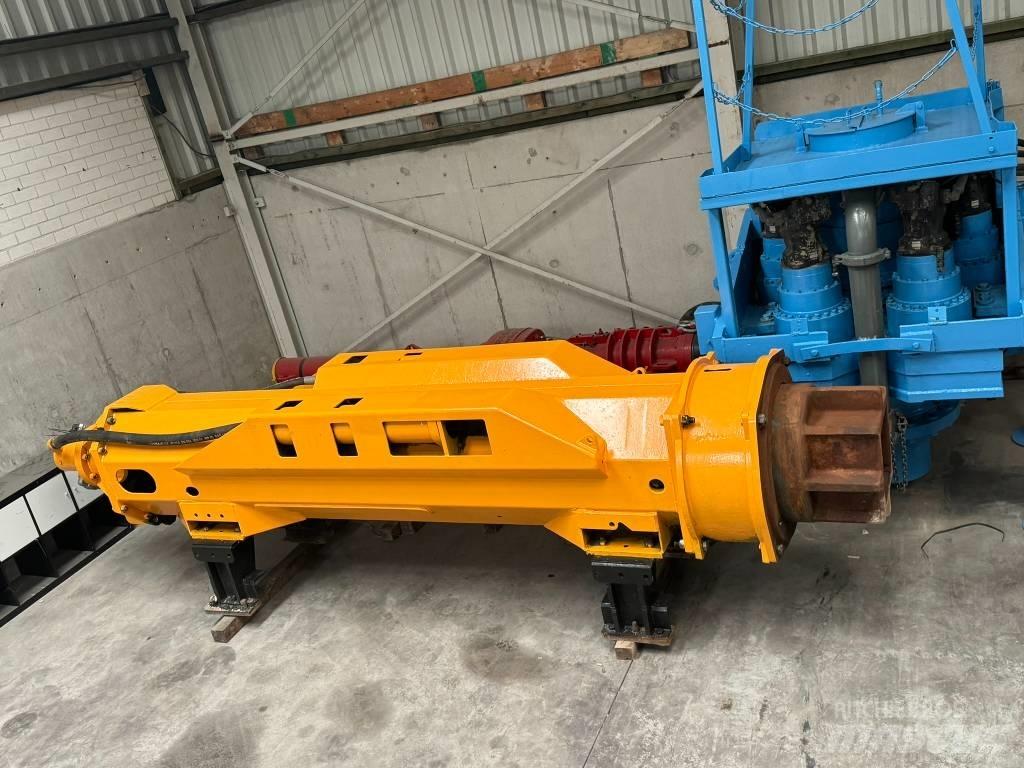

The BSP HH 6LH is a hydraulic impact hammer which was especially designed for leader guided pile driving. The hammer has a very smart design which makes it short and therefor makes it suitable to drive longer piles than with most other hammers. This hammer is suitable to be used with the drive cap system of van Hattem. It can be used to drive steel tubes but the hammer is also suitable for driving precast concrete piles. Specifications: Max. energy 71 kNm Max. stroke 1200 mm Length is 5500 mm Max. blow rate at 1.200mm stroke is 40 blows/min. Max. oil flow 180 ltr/min Max. pressure: 250 bar Operational weight 8500 kgPrikaži više

Foundiz

Kroonstraat 1 4879 AV Etten-Leur Noord-Brabant Nizozemska
