Durma AD-R 40320

Cijena isklj. PDV

Compnay LOGO
Images7
Durma AD-R 40320 Ostalo
Durma AD-R 40320 Ostalo
Durma AD-R 40320 Ostalo
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Ostalo
Marka / model
Durma AD-R 40320
Godina proizvodnje
2015
Dodatne opcije
Polovna
Lokacija stroja
Langley, British Columbia
Država
Kanada
Mascus ID
2AFCB026

CIJENE

Izaberite valutu

DETALJI

Inventarni broj
135381
Ostale informacije

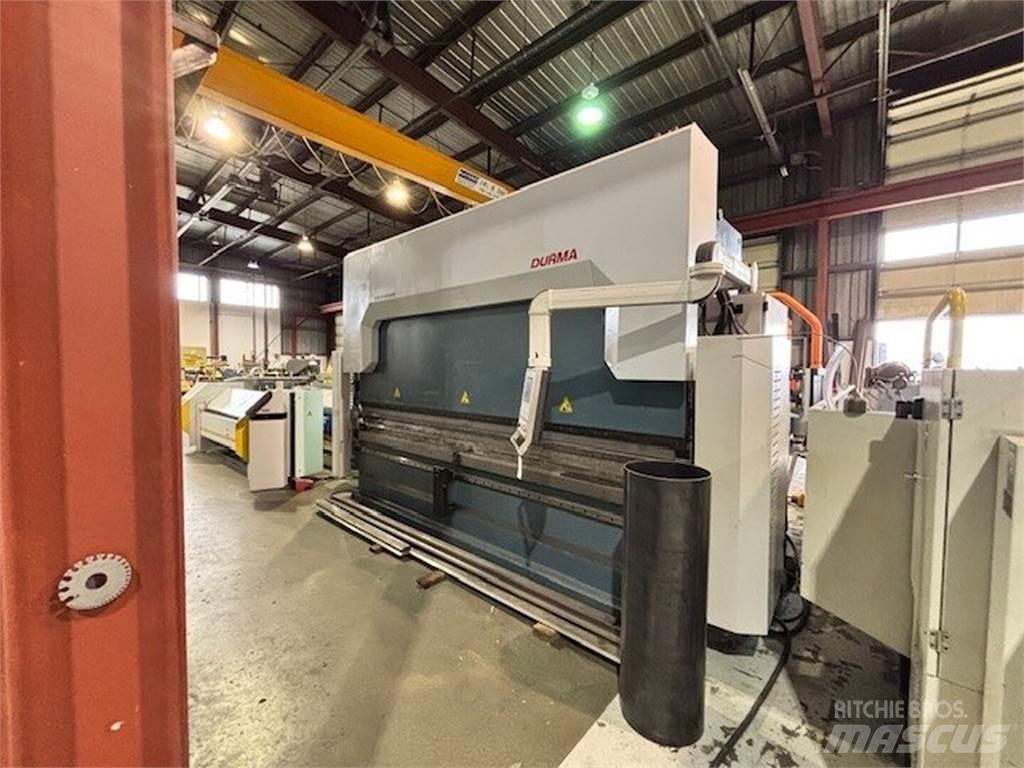

13 ft x 320 Ton Hydraulic Press Brake AD-R 40320 Title: 13 ft x 320 Ton Hydraulic Press Brake AD-R 40320 SKU: 135381 Model: AD-R 40320 Year: 2015 Condition: Used S/N: 73661510588 GeneralBed Length:13 ft Tons:320ton Brake Type:Hydraulic CNC:Yes ElectricalVoltage:440volts Phase:3-phase Made In: UNITED STATES Dimensions: 127.00 (H) x 75.00 (W) x 209.00 (L) inches FEATURES: - Largest Volume Press Brake Producer - Welded steel frame incorporates rigid stress relieved frames - Y1, Y2, X and R axis Power - CNC DT 15 Controller - Excellent bending quality with X and Y motor drivers - Hardened and ground tooling - EASY Front sliding support arms with T-slots and Tilting Stop - Fakas Safety Lite Curtain front & rear - European/North American RAM clamping - 13 ft 4 way die holder 4 way die & upper gooseneck punch COMPLETE WITH: - Foot Pedal Controller - Motorized Backgauge with 1000 mm/39" Travel - 12" Bed Width - Back Gauge - Linear guide ball bearing system - Back Gauge Fingers - Height Adjustable - World Class Hydraulics, Blocks, Valves and Electronics (SIEMENS/BOSCH) - CNC motorized crowning - D Bend Software - Powered R Axis Specifications: Bending power: 320 Ton Metric, 350 US Ton Bending length: 4050 mm / 13.350 ft Distance between centers: 3600 mm / 122" Backgauge travel: 650 mm / 25.6" Backgauge finger blocks: 2 Number of sheet support arms: 2 Oil capacity: 250 L Motor power: 50HP / 220-440V / 3 Ph / 60 Hz- Stroke: 365 mm / 14.4" Daylight: 630 mm / 24.8" Throat depth: 450 mm / 17.7" Bed height: 900 mm / 35.4" Bed width: 300 mm / 12"Prikaži više

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
