Horyong BMK-403 ECO

Cijena isklj. PDV

Pitaj za cijenu

Compnay LOGO
Images6
Horyong BMK-403 ECO Drugi kranovi
Horyong BMK-403 ECO Drugi kranovi
Horyong BMK-403 ECO Drugi kranovi
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Drugi kranovi
Marka / model
Horyong BMK-403 ECO
Godina proizvodnje
2018
Satovi korištenja
287 h
Lokacija stroja
Duisburg, Nordrhein-Westfalen
Država
Njemačka
Opća ocjena
1
2
3
4
5
Mascus ID
A65059D6

DETALJI

Broj prijašnjih vlasnika
1
Bruto težina
4.019 kg
Maks. kapacitet dizanja
4.200 kg
Maks. nosivost na kraju prečke
3.000 kg
Boom duljina
680 cm
Nosiva prečka
220 cm
Maksimalna visina dizanja
680 cm
Nosivost
1.020 cm
Visina dizalice - horizontalni krak
840 cm
Visina dizalice - zglobni krak
221 cm
Gornji motor
see chassis
Gornji sati
200 h
Izvorna boja
Silber-Grün
Nosač motora
Electric
Transportne dimenzije (DxŠxV)
435000 x 157000 x 205000 mm
Tip nosača
Sa kotačima
Marka guma
NM-Bereifung
Preostale prednje gume / podvozje
90
Zaliha stražnjih guma
90
Zemlja proizvodnje
Južna Koreja
Uvjeti isporuke
FCA, CPT, EXW
Certifikati
CE, TÜV
Dodatna oprema
Hakenflasche 1-rollig
Dodatna oprema
Blokovi kuka
Dokumenti
Traglasttabellen-Horyong-BMK-403-ECO-Hauptausleger-abgestutzt.pdf
Ostale informacije

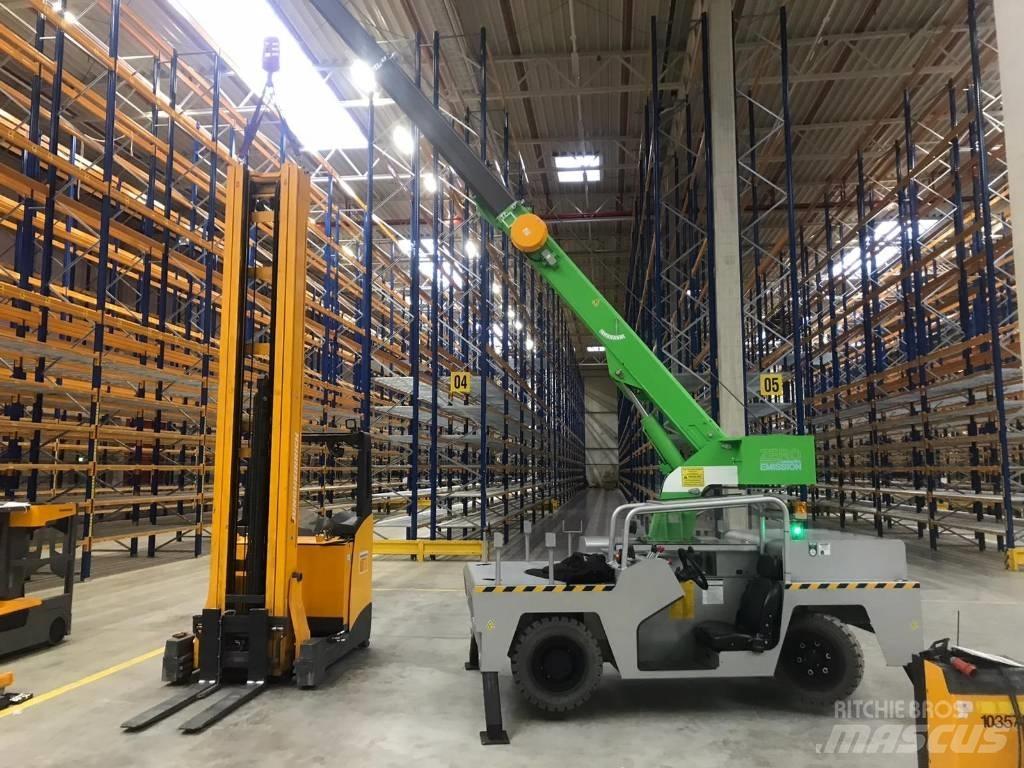

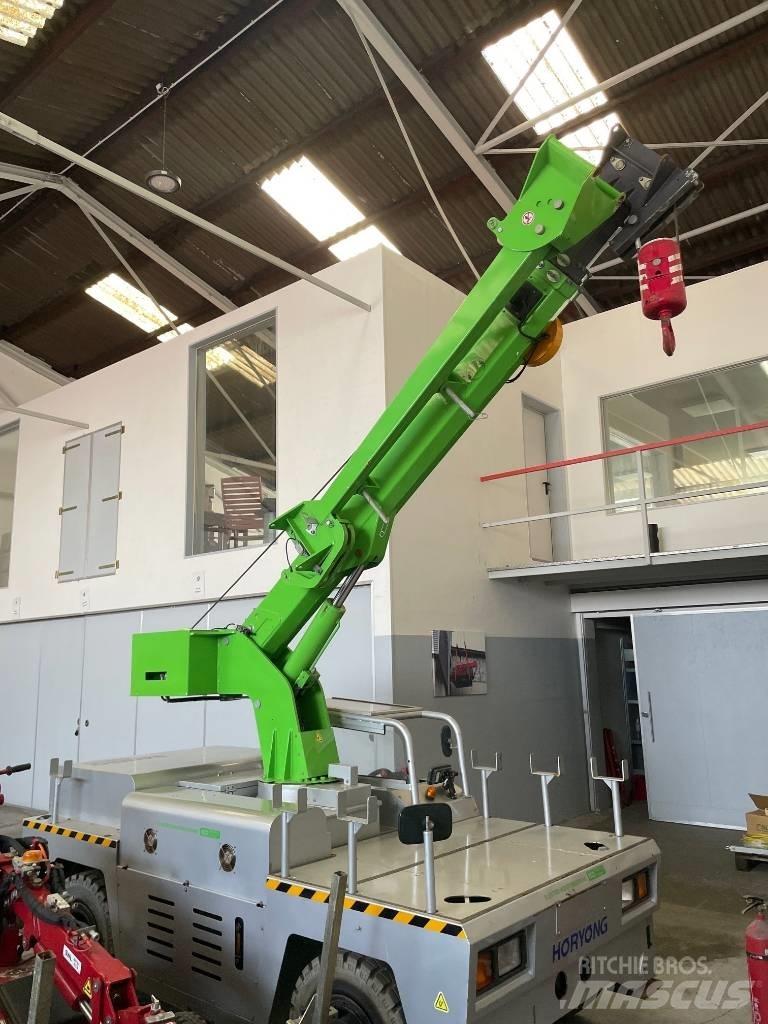

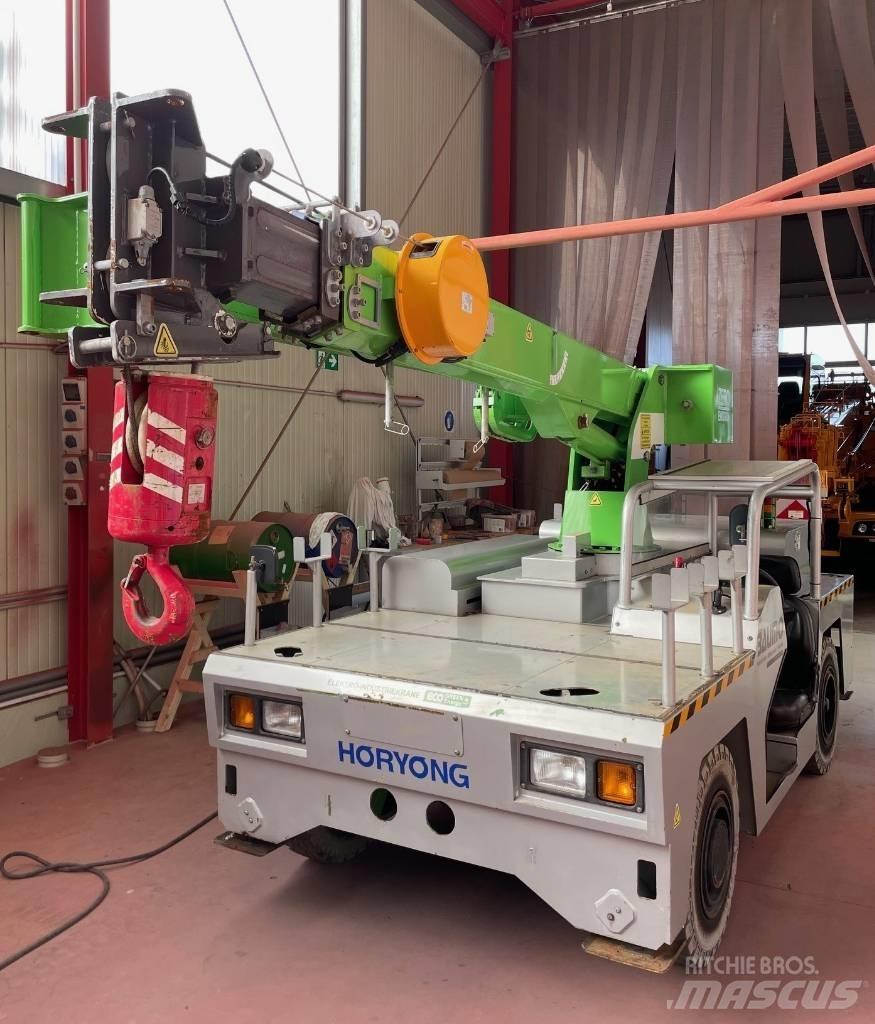

Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.Prikaži više

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Njemačka
