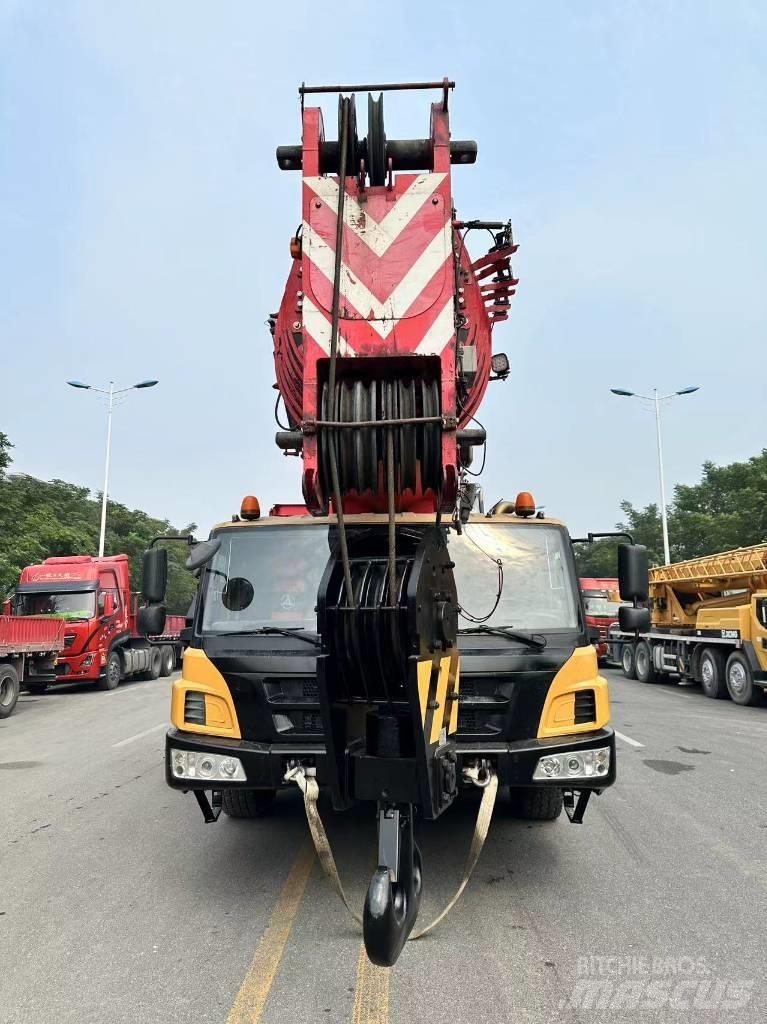

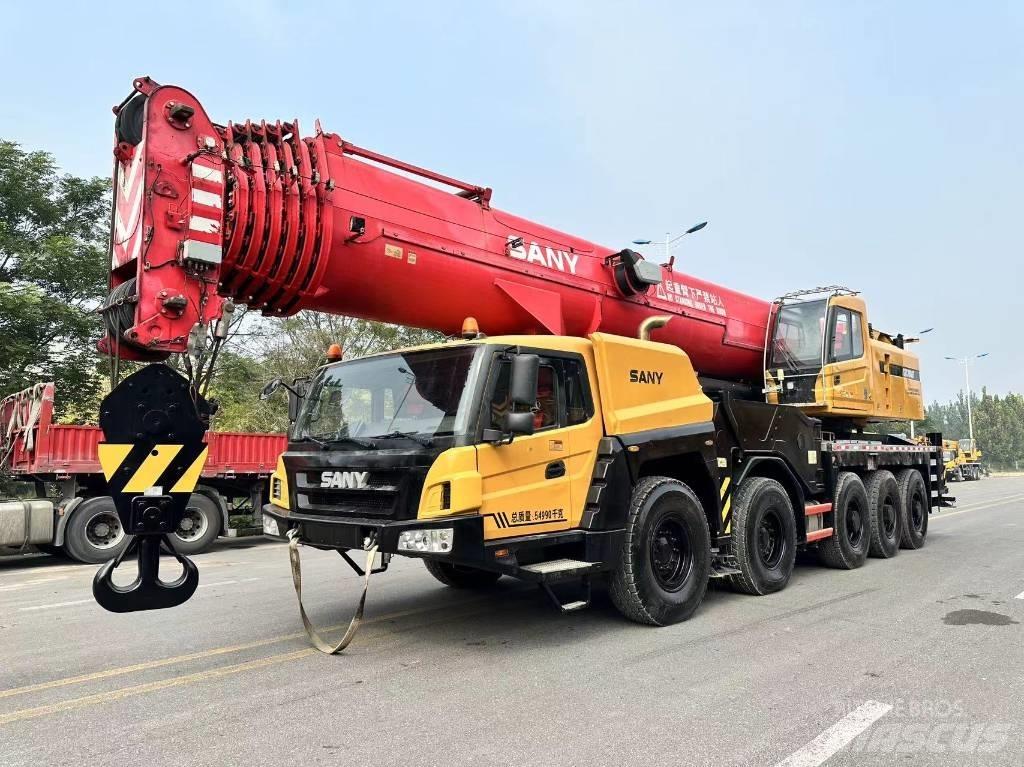

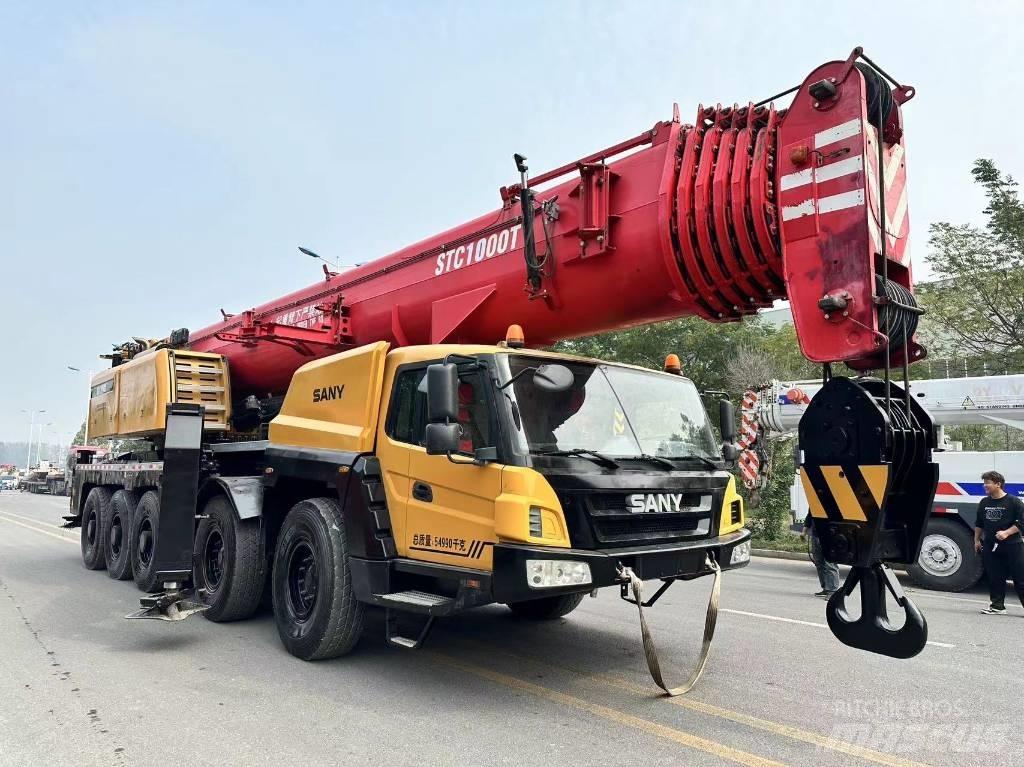

SANY 100 Tons STC1000T TRUCK CRANE
Brand: SANY
Model: STC1000T
Capacity: 100t
Year: 2019
Price: 145000 USD FOB CHINA
Perfectly conditons,excellent after-sale service, Contact for more favorable price!
Contact: Alan Wang
Mobile: 008618639069266 / 008618211689690
(Whatsapp/WeChat/Viber/Imo/Line/Facebook)
1, Boom: 7 sections / 12.32m-64.5m
2, Jib: 18.5m
3, Engine:
Down Engine: Cummins ISZ480 51 353kw/1900rpm
Up Engine: Cummins QSB6.7-C260 194kw/2200rpm
Emission standard: National V
4, Transmission system:ETON Auto;
11 Speeds Forward gear; 3 Reverse gears
5, Crane Size: 14276*3000*4000mm
Crane Weight: 54990kg
6, Counterweight: 40.2t
Main configuration list of Sany STC1000T truck crane:
1, Hydraulic configuration Main oil pump : Rexroth (Made In Germany)
2, Winch motor : Kawasaki (Made In Japan)
3, Slewing motor : Sany Heavy Industry
4, Onboard configuration Slewing support : Sany Heavy Industry
5, Slewing reducer : Sany Heavy Industry
6, Winch reducer: Sany Heavy Industry
7, Gearbox: Eaton
8, Axle: Dajiang
9, Steering gear: Nantong Global
10, Tire: Taikeying/Qianjin
Perfectly conditons,excellent after-sale service, Contact for more favorable price!
2.1 Superb performance
The STC1000T truck crane has the strongest operating performance in the same tonnage industry, and the best driving performance in the same tonnage industry. It is a 100t truck crane with an absolute leading advantage.
2.2 Super long U-shaped main boom:
7-section main boom, using advanced single-cylinder pin telescopic technology, main boom length 12.3m ~ 64.5m, basic boom torque up to 4920kN.m, the longest main boom torque up to 2400kN.m, jib length 15.5m, optional 1 section 6m main boom extension section and 2 sections 6m jib extension sections, maximum lifting height 97.3m, farthest lifting range 72m, installation angles 0°, 15°, 30°
2.3 Compact, flexible, easy to transfer
Compact body design, vehicle length 14.276m, 5-axle chassis, 4-axle steering, turning diameter 19.6m, more flexible transfer, more suitable for factory, city and other narrow site construction. Equipped with 385 95R25 all-terrain tires, it has better off-road performance.
2.4 Heavy-duty high-strength frame
The rectangular frame section is adopted to greatly improve the bending and torsion resistance of the frame;
After more than 10,000 fatigue tests, the performance is more reliable.
2.5 Front swing outrigger (two-stage retractable)
The transmission system is optimized, and the engine output torque is directly transmitted to the drive axle through the transmission shaft, which greatly improves the transmission efficiency.
It can operate 360° and has strong front operation ability
2.6 Maneuverability:
The electric proportional control technology and closed double-slewing system are adopted, and the control performance is more stable and reliable;
The fixed-point pin retractable system is adopted, and the arm extension process is smoother and more reliable.
2.7 Safety
All-round safety protection system, the main and auxiliary winches are equipped with three-circle protectors and height limiters to prevent over-release and over-winding of wire ropes, extreme angle protection, and outrigger pressure protection;
Torque limiter: The highly intelligent torque limiter system is adopted to protect the hoisting operation in all directions to ensure accurate, safe and reliable operation;Prikaži više
