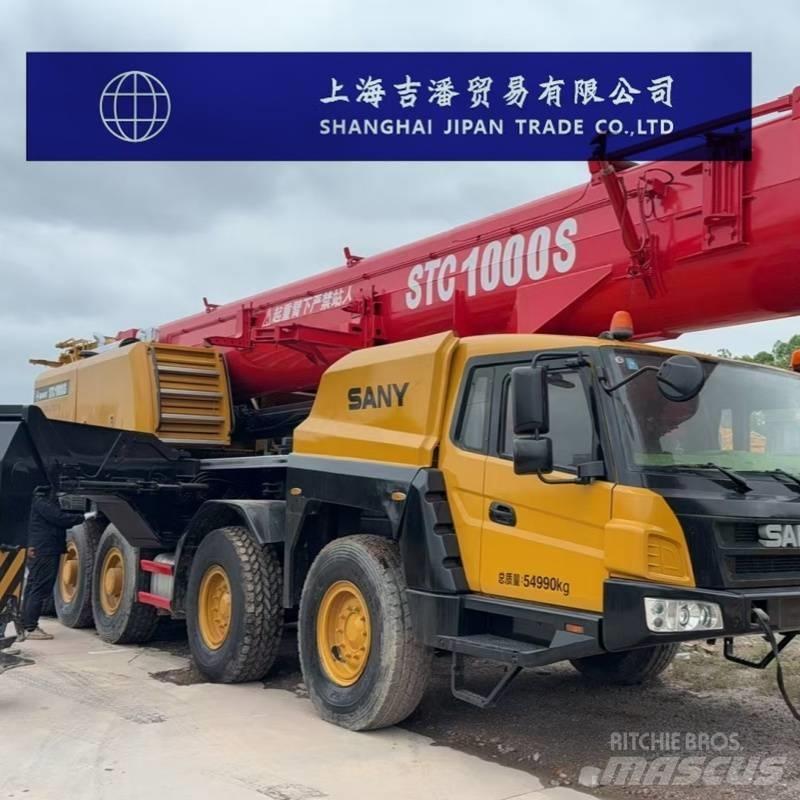

Sany STC 1000 S
Cijena isklj. PDV
Ispis
INFO
Grupa proizvoda / vozila
Rabljene dizalice za težak teren
Marka / model
Sany STC 1000 S
Godina proizvodnje
2021
Satovi korištenja
1.800 h
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
741E6EE5
CIJENE
Izaberite valutu
DETALJI
Inventarni broj
1
Zadnji pregled
2025-07-11
Serijski broj
1
Broj prijašnjih vlasnika
1
Bruto težina
54.990 kg
Maks. kapacitet dizanja
100.000 ton
Registracijski broj
1
Maks. nosivost na kraju prečke
100.000 ton
Min boom length
14 m
Emisijski razred
Faza V
Boom duljina
16 m
Min luffing jib
3 m
Nosiva prečka
15 m
Maksimalna visina dizanja
15 m
Nosivost
78,5 m
Visina dizalice - horizontalni krak
15 m
Visina dizalice - zglobni krak
14 m
Gornji motor
Benz
Gornji sati
857 h
Tip dizalice
Hidraulički krak dizalice
Izvorna boja
Original
Protuteža
14,000
Nosač motora
Original
Engine manufacturer
Original
Transportne dimenzije (DxŠxV)
14000 x 3000 x 4000 mm
Tip nosača
Sa kotačima
Podaci o stanju/jamstvo
Good Condition
Marka guma
米其林
Preostale prednje gume / podvozje
98
Zaliha stražnjih guma
2
Zemlja proizvodnje
Kina
Uvjeti isporuke
FCA, FOB, CIF, EXW
Certifikati
EPA, CE
Dodatna oprema
Fly Jib,Hook,Counter Weight,ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Dodatna oprema
Blokovi kuka
Ostale informacije
Parameter configuration of Sany Heavy Industry STC1000S crane
Lifting capacity
Maximum rated lifting capacity (t) : 100
Maximum rated lifting moment (KN.m) : 4234
Maximum rated lifting moment for fully extended boom (KN.m) : 1852
Maximum lifting height - base boom (m)12.6
Maximum lifting height - fully extended boom (m)63.5
Maximum lifting height - basic boom + auxiliary boom (m)79
Maximum lifting capacity (tons) : 91-180 tons
Boom size
The basic number of arm segments is 7
The cross-section type of the boom is U-shaped
Boom length - base boom (m)12.1
Boom length - fully extended boom (m)63
Boom length - basic boom + auxiliary boom (m)78.5
The installation angles (°) of the auxiliary boom are 0, 15, and 30
Operation speed parameter
The maximum lifting speed of the main hoist (m/min) is 145 (no-load)
The maximum lifting speed of the auxiliary hoist (m/min) is 123
The full extension time of the boom (seconds) is 500
Boom luffing time (s) Full lifting/lowering time :40/150 seconds
Rotational speed (rpm)2
Engine
Chassis engine models: Engine ISZ475 30 354kW EuroⅢ, Cummins ISZ480 40 358kW EuroⅣ
Rated power (kw/rpm) : 354/1800, 358/1800
The on-board engine is Cummins QSB6.7-C240 178kW NR2
Rated power (kw/rpm)178/2200
Driving parameters
Maximum driving speed (km/h) : 85
Minimum turning radius (m) : 9.6
Maximum climbing gradient (%) : 45
Approach Angle/departure Angle (°)21/18
Minimum ground clearance (mm) : 315
Overall machine specification
The total length of the entire machine is 14,000 mm
The full width of the entire machine (mm) is 3000
The total height of the entire machine (mm) is 4000
Working weight (t) : 54.5
Total counterweight (t)32.5
Outrigger span
Vertical × horizontal (m)7.8×7.8
