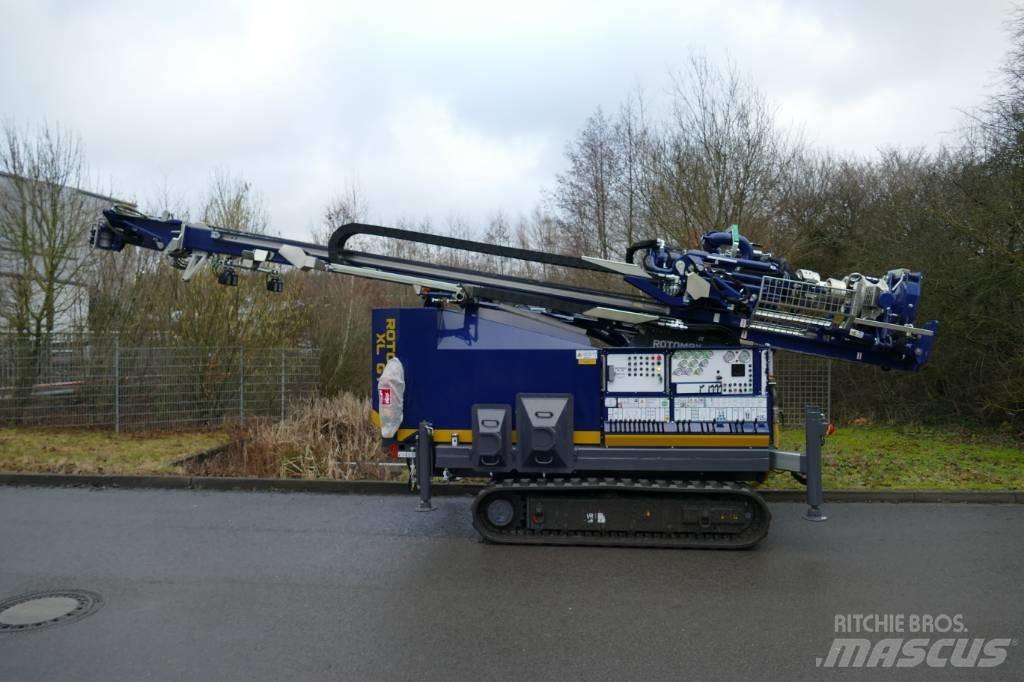

Geotec ROTOMAX XL GT

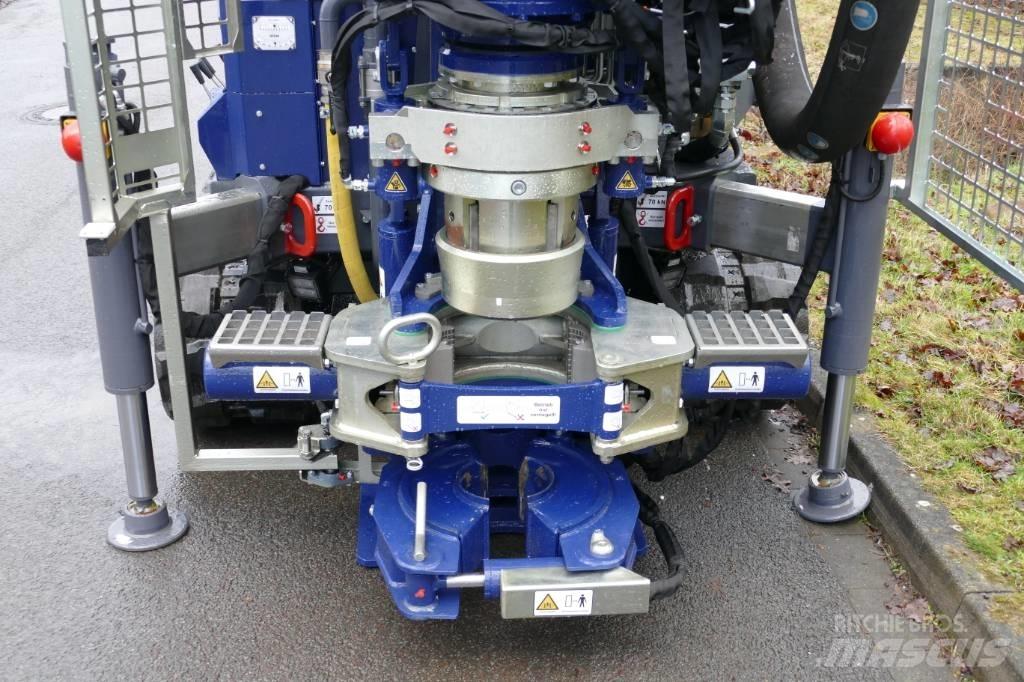

Undercarriage: Fixed crawler undercarriage with a width of 1,700 mm - 2,450 mm (depending on machine equipment). Crawler undercarriage: Crawler undercarriage with 400 mm wide rubber tracks. Transport height: 3,100 mm Weight: 8,500 - 12,500 kg. Load handles to secure the load. Supports: 4 hydraulic outriggers Drive: 4-cylinder turbo diesel engine 140 kW (190 hp) with Stage 5 and hydraulic pumps with direct drive, pressure filter, oil cooler, bypass filter for hydraulic circuit and AdBlue Mast K15 Rear lift: max. 15000kg Stroke: 4200 mm between idler pulleys Tensioning head Ø219 Rotomax XL Tensioning head ROTOMAX XL Tensioning system The system consists of a Ø419 mm pressing jaw, a Ø419 mm lower jaw and a Ø219 mm lower jaw. Technical data of the pressing jaws Clamp diameter Ø80 mm - Ø419 mm Rotation 30 Rotation force 35kN Pulling force 240kN Stroke: 500 mm We are the manufacturer, please contact us. Tel: +49 162 279 618 5
