Shantui SD32

Cijena isklj. PDV

Pitaj za cijenu

Compnay LOGO
Images3

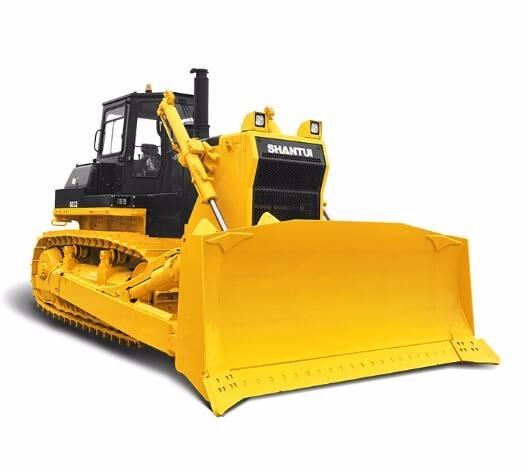

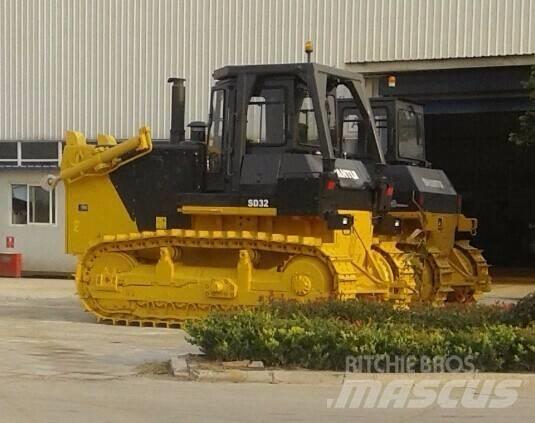

Shantui SD32 Buldožeri gusjeničari
Shantui SD32 Buldožeri gusjeničari
Shantui SD32 Buldožeri gusjeničari
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Buldožeri gusjeničari
Marka / model
Shantui SD32
Godina proizvodnje
2018
Dodatne opcije
Novo/nekorišćeno,Mogućnost iznajmljivanja,Obnovljeno
Lokacija stroja
Jining, Shandong, China
Država
Kina
Opća ocjena
1
2
3
4
5
Mascus ID
9DD39A99

DETALJI

Inventarni broj
SD32
Zadnji pregled
yes
Evidencija svih servisa
Da
Radna širina
413 cm
Serijski broj
SD32
Bruto težina
37.200 kg
Tip daske
Ravna daska
Podvozje
Sa gusjenicama
Emisijski razred
Faza II
Tip kabine
Zatvorena kabina
Motor
Cummins NTA855-C360S10
Snaga motora
232 kW (315 KS)
Širina gusjenice
560 mm
Mjenjač
Shantui
Engine Manufacturer
Cummins
Transportne dimenzije (DxŠxV)
6880 x 4130 x 3730 mm
Izvorna boja
yellow
Marka guma
Shantui
Podaci o stanju/jamstvo
ISO9001
Preostale prednje gume / podvozje
100
Zemlja proizvodnje
Kina
Opremljen za
propertynames.pp_equippedfor_2100012
Uvjeti isporuke
FOB, CFR, CIF, EXW
Certifikati
EPA, CE, ANSI
Dodatna oprema
Vitlo
Klima-uređaj
Dodatna hidraulika
Jedan riper
Prikaži više
Ostale informacije
Technical Features ●Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available. ●The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity. ●The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine. ●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame. ●The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity. ●The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t)(excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Prikaži više
