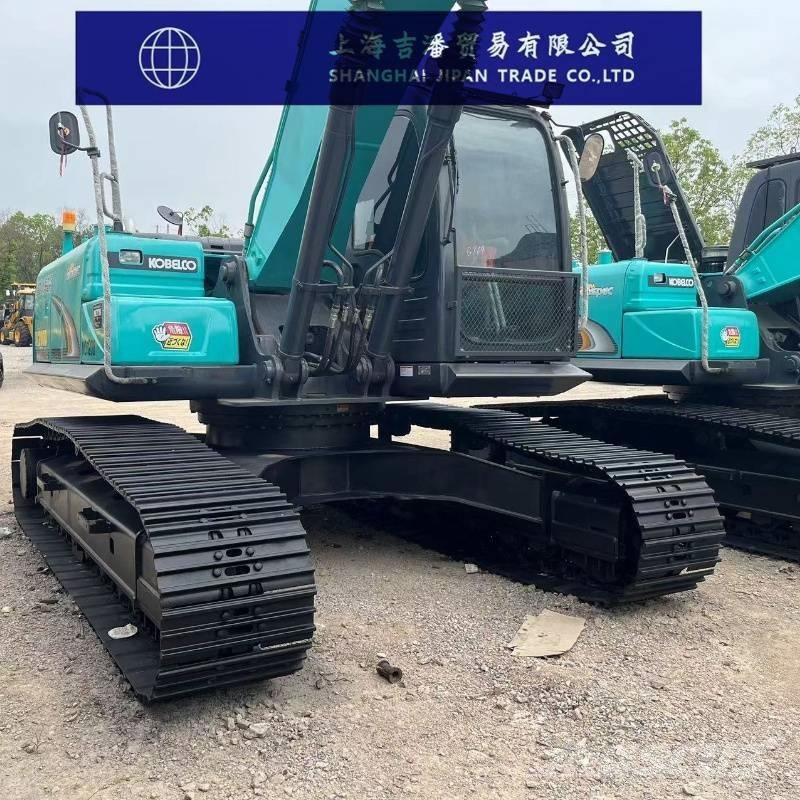

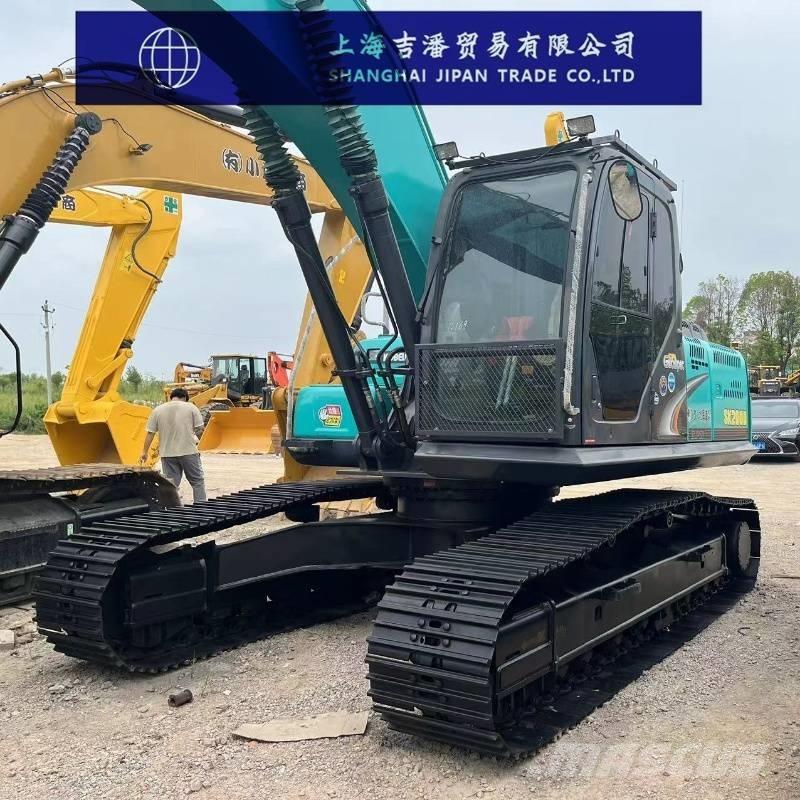

Kobelco SK 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Kobelco SK200-12 China IV excavator parameter configuration specification Power fuel Joint ventures/imports Bucket backhoe Tonnage (tons) 20 The working weight of the whole machine (kg) is 21400 Bucket capacity (m³) 0.93~1.0 Boom length (mm) 5650 Stick length (mm) 2940 performance Rotational speed (rpm) 11 Travel speed (km/h) 3.4/5.4 Climbing ability (%) 70 Bucket digging force (kN) 143 Stick digging force (kN) 102 Maximum traction (kN) 227 dynamical system Engine model: CUMMINS F4.5CS4145 Rated power (kw/rpm) 108/2200 Maximum torque (N.m) 600/1200 Displacement (L) 4.5 Bore × stroke (mm) 107*124 Hydraulic system The maximum flow rate of the main pump (l/min) is 2*195 Working hydraulic oil circuit (Mpa) 34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing hydraulic circuit (Mpa) 29 Control Hydraulic Circuit (Mpa)5 Oil capacity Fuel tank (L) 420 Hydraulic System (L) 258 Engine oil change volume (L) 13 Coolant (L) 20 Body size Total length of transport (mm) 9610 Total width of transport (mm) 2800 Total height of transport (mm) 3120 Boarding width (mm) 2710 Track grounding length (mm) 3370 Total track length (mm) 4170 Track shoe width (mm) 600 Track gauge (mm) 2200 Counterweight ground clearance (mm) 1070 Minimum ground clearance (mm) 415 Scope of work Maximum digging radius (mm) 9900 The maximum excavation radius of the stopping surface (mm) is 9730 Maximum digging depth (mm) 6700 Maximum digging height (mm) 9690 Maximum unloading height (mm) 6910
