Marini Magnum 160

Cijena isklj. PDV

Pitaj za cijenu

Compnay LOGO
Images2

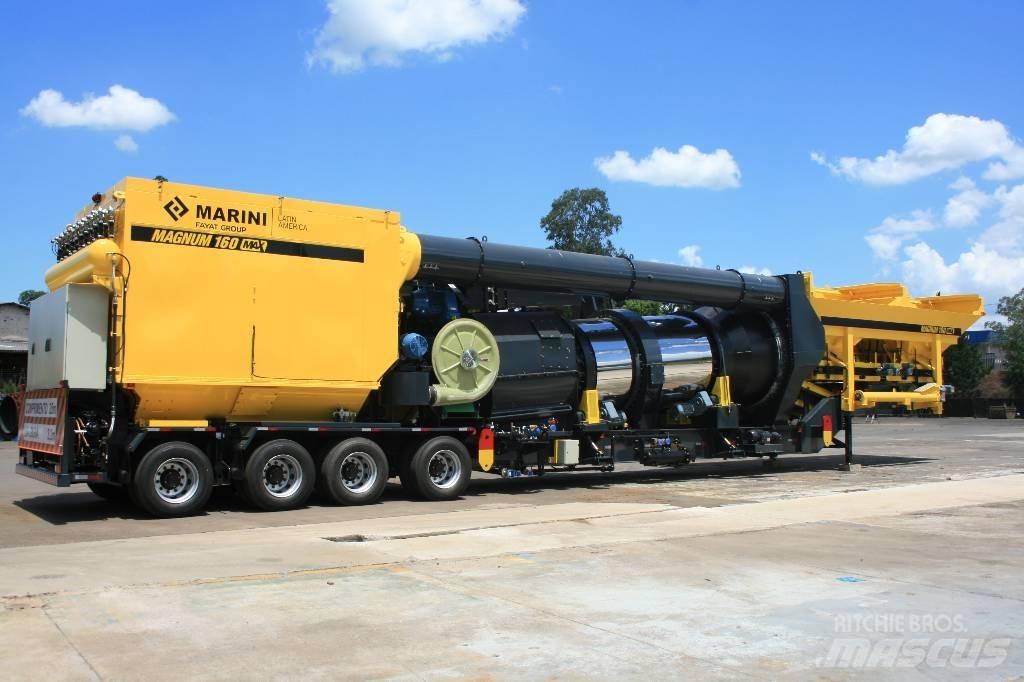

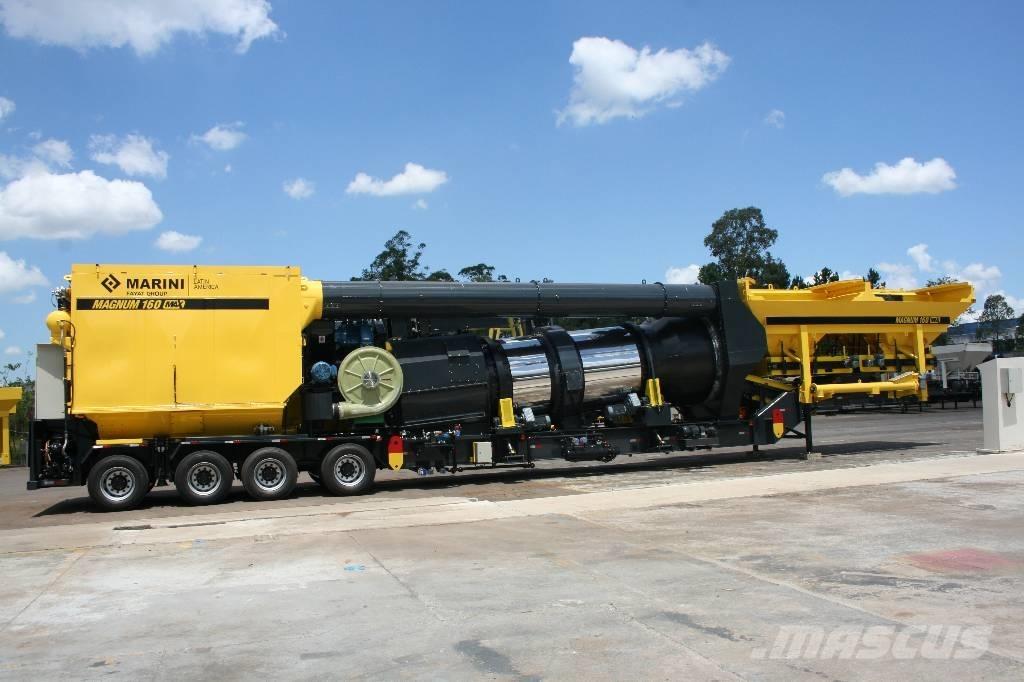

Marini Magnum 160 Asfaltne baze
Marini Magnum 160 Asfaltne baze
FavoriteFavoriti
shareDio
Save searchSpremi pretragu
Ispis

INFO

Grupa proizvoda / vozila
Asfaltne baze
Marka / model
Marini Magnum 160
Godina proizvodnje
2025
Dodatne opcije
Novo/nekorišćeno
Lokacija stroja
Finowfurt bei Berlin, Brandenburg
Država
Njemačka
Mascus ID
0EE96996

DETALJI

Ostale informacije
new Marini Magnum 160 mobile asphalt mixing plant year: NEW capacity: up to 160 t./h 1 year guarantee - calorific power of the fuel 9,600 kcal / kg; - material passing through the #8 (2,38mm) sieve is no more than 20%; - The equipment was developed in order to facilitate the transportation as much as possible without the need of pilot cars. Simply hook up the equipment to the asphalt binding agent storage and fuel system. - Chassis is built with a highly resistant I-Beam with a forged king pin, 3 axles with special tires, suspension springs, air brakes, tank, and safety valve, highway signaling system, mechanical foot with telescopic support. Quadruple feed bin (two-by-two) with 3,80mm wide opening and a capacity of 6m3, completely designed to support the strains during the unloading of materials. Regulated floodgate for flow of aggregates. - Automatic vibrator system for one bin, which facilitates the flowing of fine aggregates with high humidity ratios in one of the bins. - Feeding belts with 20" wide canvas supported by 4" rollers in "V" with permanent lubrication. The gear box is hooked directly to the drum shaft. Drums are regulated with oscillating and shielded bearings. 3-hp electric motor. - Conveyor belt in U-Beam, 24 wide canvas supported by 4 rollers in V shielded rollers actuated by a 7.5hp electric motor. - Sieve with a screen for eliminating oversized materials. - Drum dryer and mixer with heat insulation, four driven supports rollers made of high carbon steel driven by gear box, electric motor 15hp. - rotational external mixer - burner with fuel spraying by gear pump 18.000.000 Kcal/h - Dry filtering system that consists of dust collecting system - Control system Sistex complete offer and details by request * more machines, mixing plants and trucks on our website www.bss.netPrikaži više

BSS heavy machinery GmbH

Magistrale 9-11 16244 Finowfurt bei Berlin Brandenburg Njemačka
